Description:

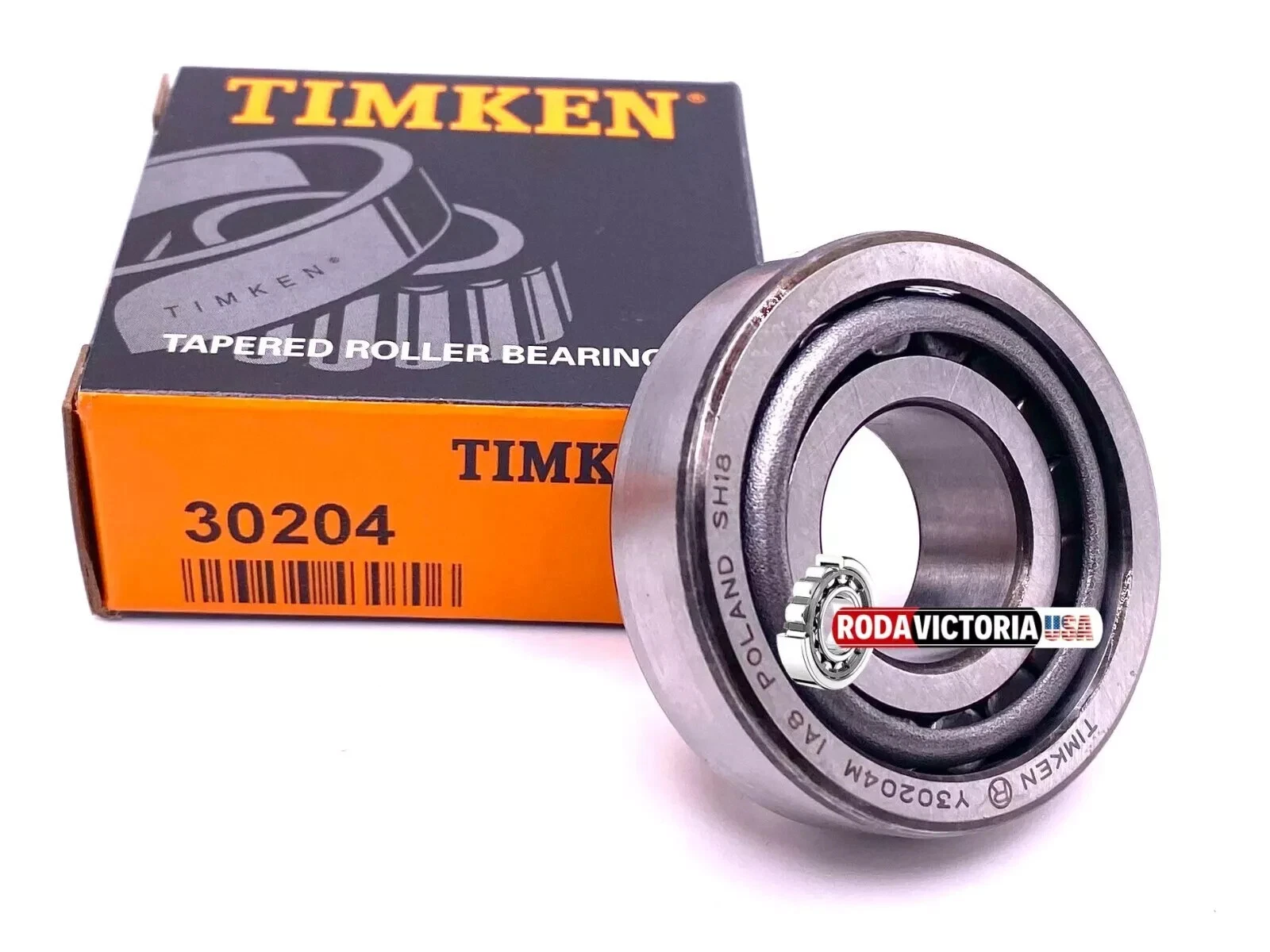

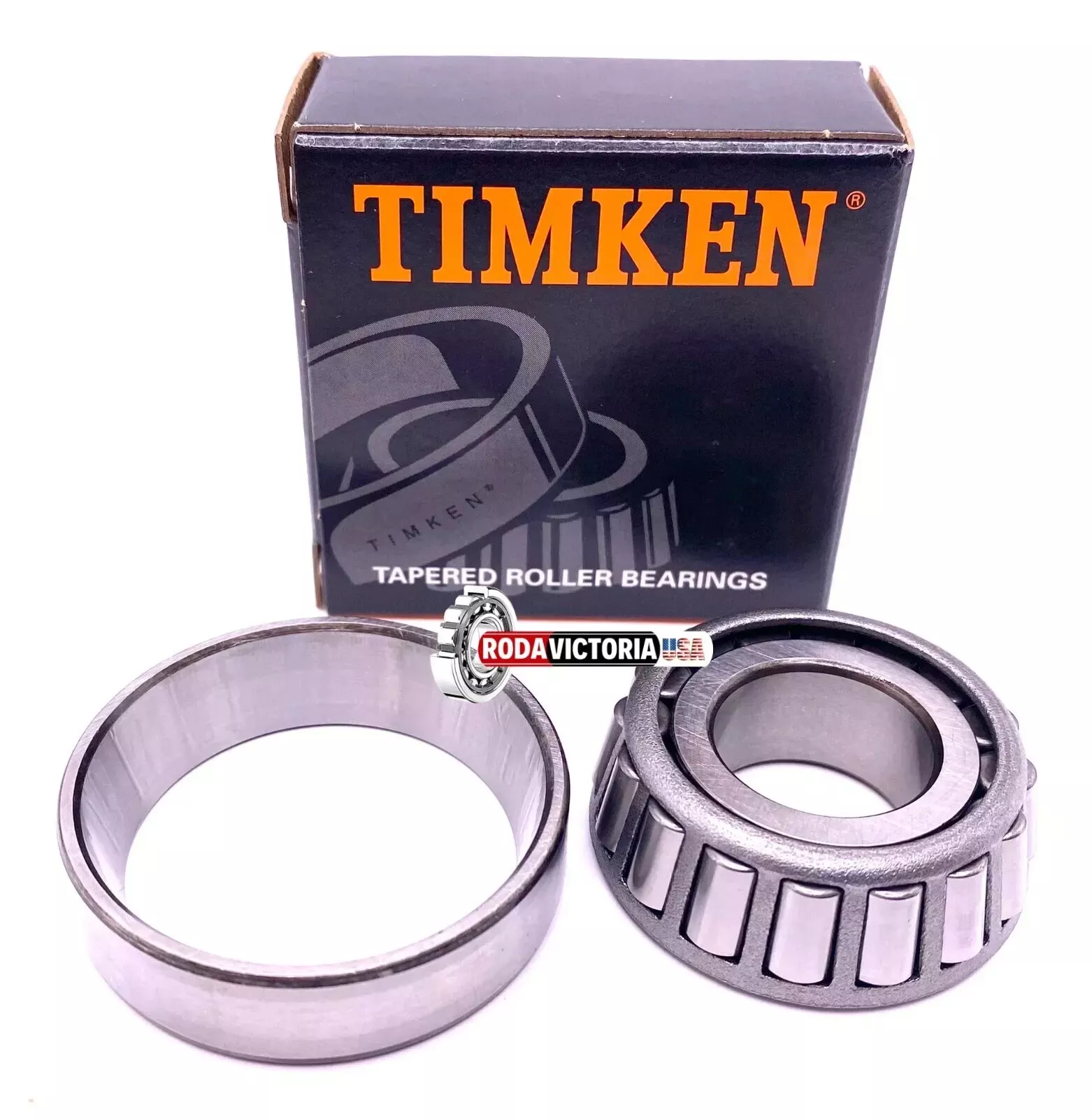

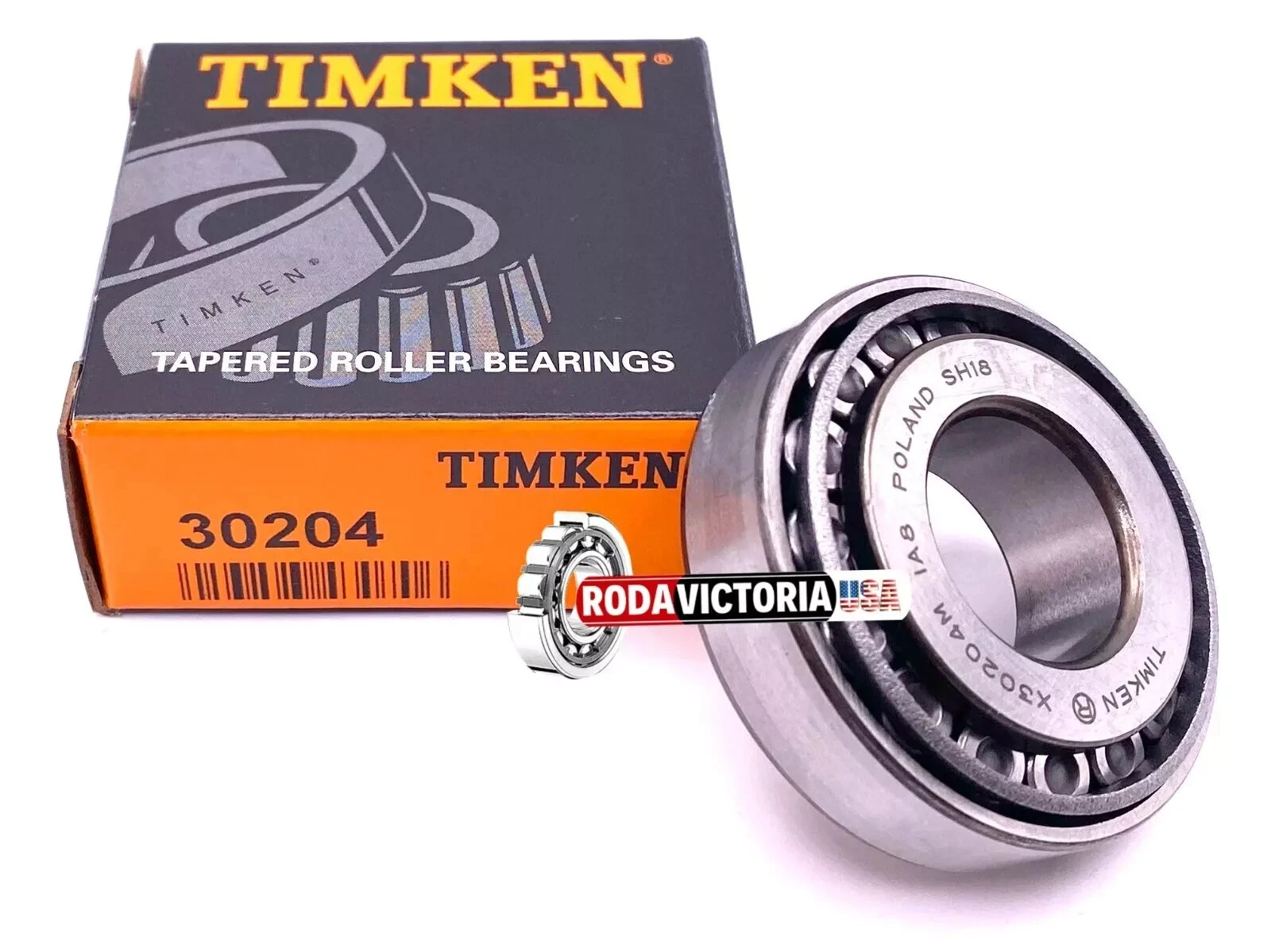

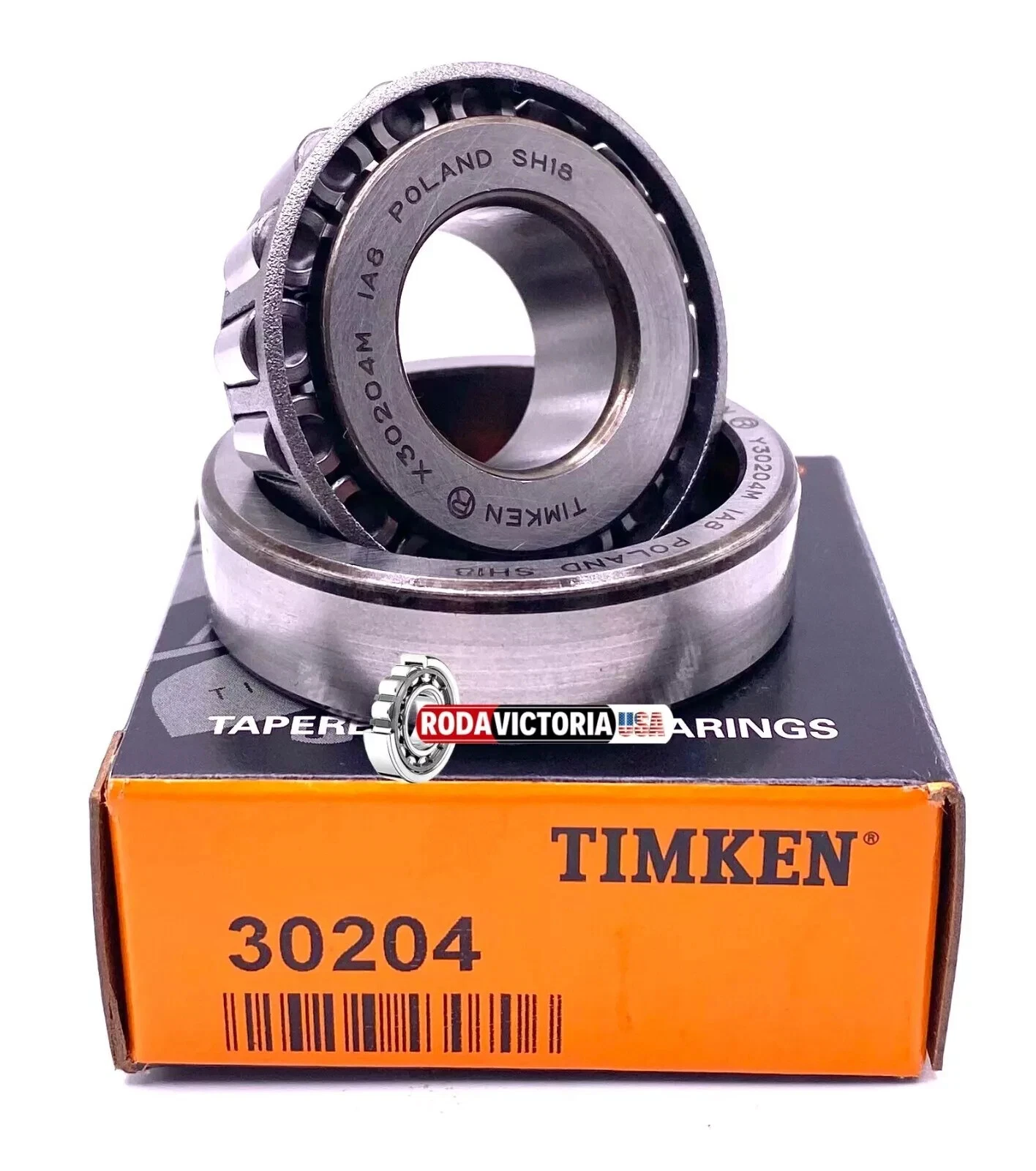

Timken Metric taper roller bearing priced cup & cone together 20mm inside x 47mm outside x 15.25mm width, also known as 30204M
Timken offers the most extensive line of tapered roller bearings in the world. Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.
Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.
Benefits:
Enhanced performance in demanding applications.
Specifications
Series: 30204M
Cone part number: X30204M
Cup part number: Y30204M
Bearing weight: 0.100 Kg
Dimensions
d – Bore: 20.000 mm
D – Cup outer diameter: 47.000 mm
B – Cone width: 14.000 mm
C – Cup width: 12.000 mm
T – Bearing width: 15.250 mm
Basic load ratings
C0 – Static Radial Rating: 33000 N / 7420 lbf
Ca90 – Dynamic Thrust Rating (90 million revolutions)6: 5090 N / 1140 lbf
Package Include :
One (1) 30204 Timken Tapered Roller Bearing
