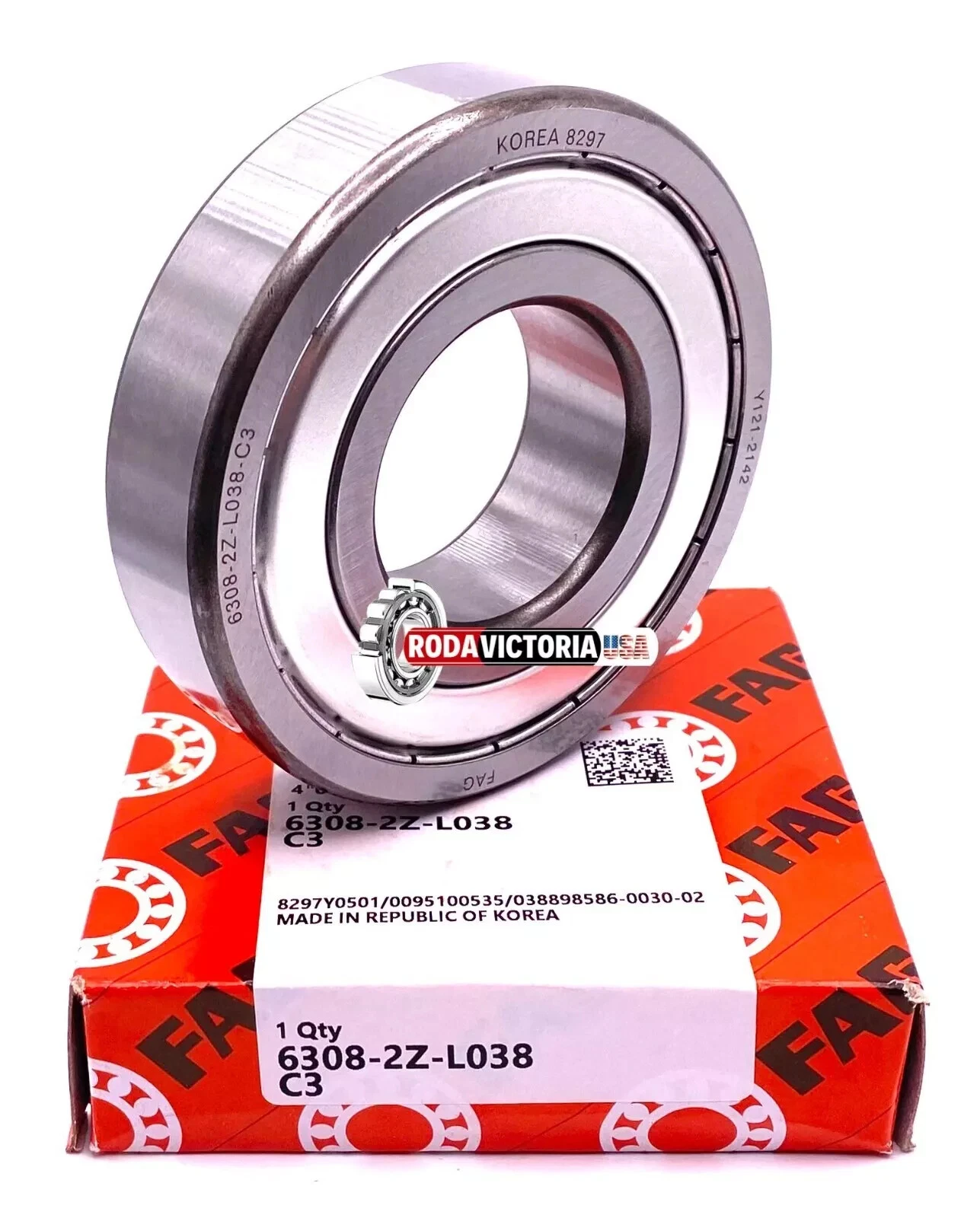

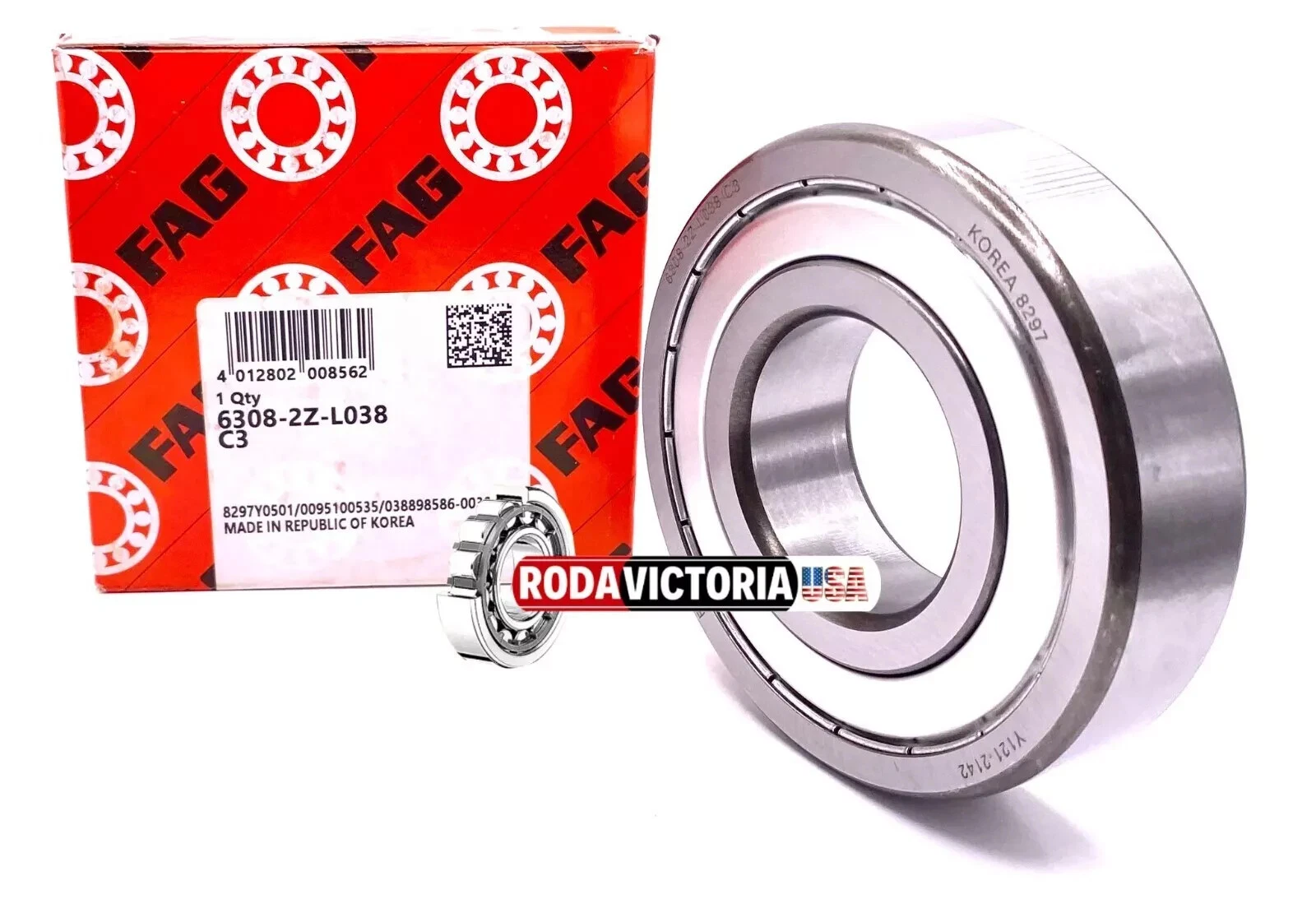

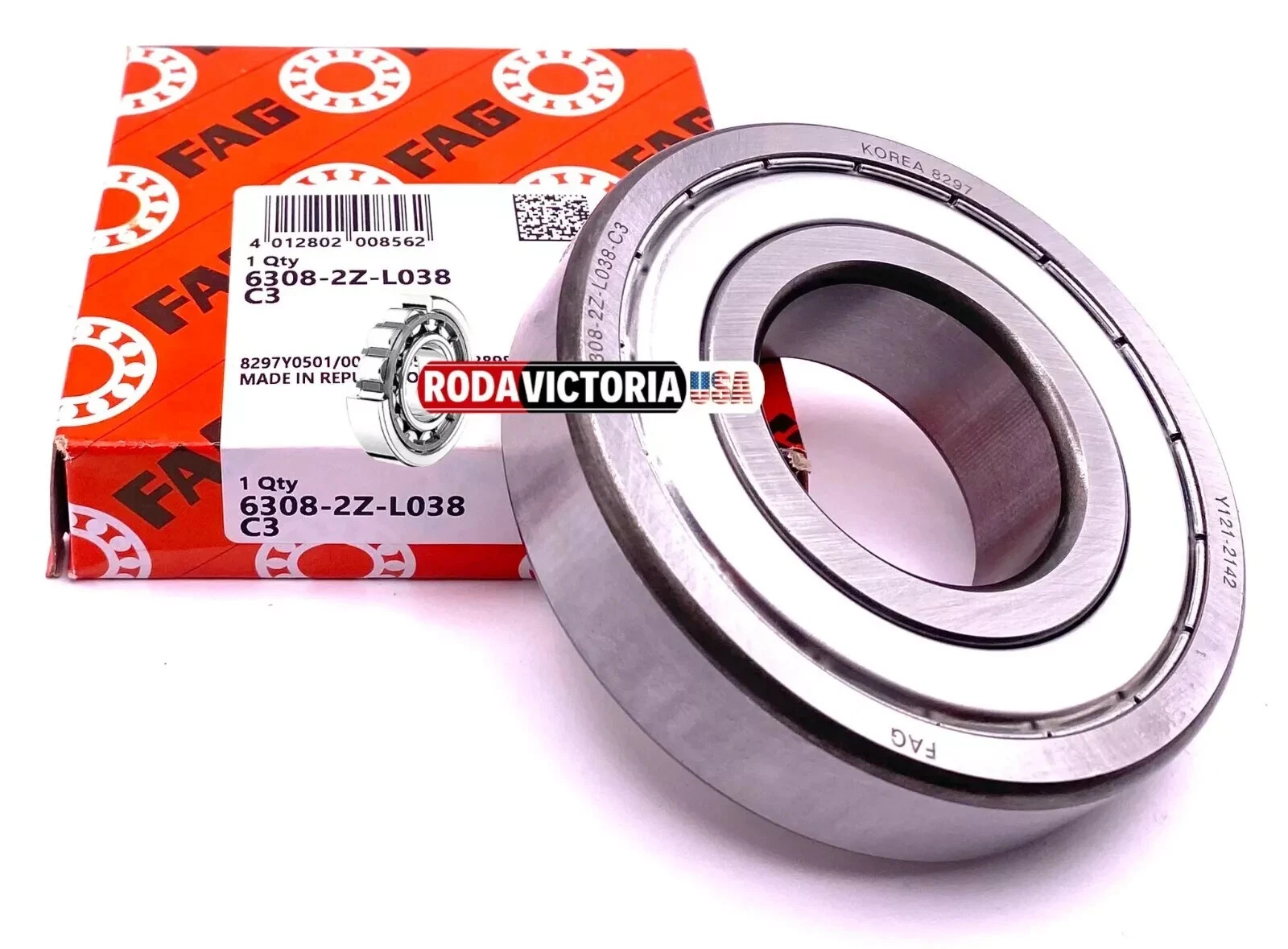

FAG 6308 ZZ L038 C3 Deep Groove Ball Bearing, Metal Shielded 40x90x23 mm

Description:

 Specifications

• Brand FAG
• Item Number6308-2Z-L038-C3 FAG
• Manufacturer Part Number0388985860030
• EAN4012802008562
• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

• Inner (d) MM40
• Outer (D) MM90
• Width (B) MM23
• Inner (d) Inch1.5748
• Outer (D) Inch3.5433
• Width (B) Inch0.9055
• Weight (kg)0.643

Product Properties

• Bore C – Cylindrical Bore
• Seal ZZ/2Z – Steel Seal on Two Sides
• Cage Type S – Steel or Standard Cage
• External Modification No External Modification
• Radial Internal PlayC3 Internal Play (Higher than Cn)
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization – Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm23
• Basic static load rating, radial (C 0r)25000
• Limiting speed (n G)9100
• Reference speed (n ϑr)9000

Suffix description

• 2ZNon-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
• L038Arcanol Grease Medium Temperature -25ºC/+130ºC
• C3Internal Clearance Larger Than Normal

Package Included: ONE FAG Bearing 6308 ZZ L038 C3
