Description:
ID: 6318-J20AA C3
MADE IN: GERMANYÂ
DESCRIPTION:Â
Brand FAG
Item Number 6318-J20AA-C3 FAG
Manufacturer Part Number 0392669820030
Also known as6318/C3
6318/C3VL0241
6318-C3
EAN4012802485479
Category Deep Groove Ball Bearings Single Row
Weight and Dimensions
Inner (d) MM 90
Outer (D) MM 190
Width (B) MM 43
Inner (d) Inch 3.5433
Outer (D) Inch 7.4803
Width (B) Inch 1.6929
Weight (kg)5.3
Product Properties
Bore C – Cylindrical Bore
Seal No Seal
Cage Type S – Steel or Standard Cage
External Modification No External Modification
Radial Internal Play C3 Internal Play (Higher than Cn)
Precision Breakdown Voltage 1000v
Lubrication Standard Lubrication
Heat Stabilization No Heat Stabilization – Temperatures up to 120 °C
Special Treatment No Special Treatment
Data from Schaeffler (medias)
Width (b) mm43
Radial Static Load Rating C0r (N)102000
Radial Dynamic Load Rating Cr (N)142000
Basic static load rating, radial (C 0r)”102000.0000″
Limiting speed (n G)4900
Reference speed (n Ï‘r)5100
ECLASS number23-05-08-01
ECLASS2 number23-05-08-01
Medias description Deep groove ball bearing 63..-J20AA, single row, cf. DIN 625-1
Suffix description
J20AACoating Which Consists Of Oxide Ceramic, It Is Applied By Plasma Spraying And Then Sealed With Synthetic Resin. Speciality Humid Environments
C3Internal Clearance Larger Than Normal

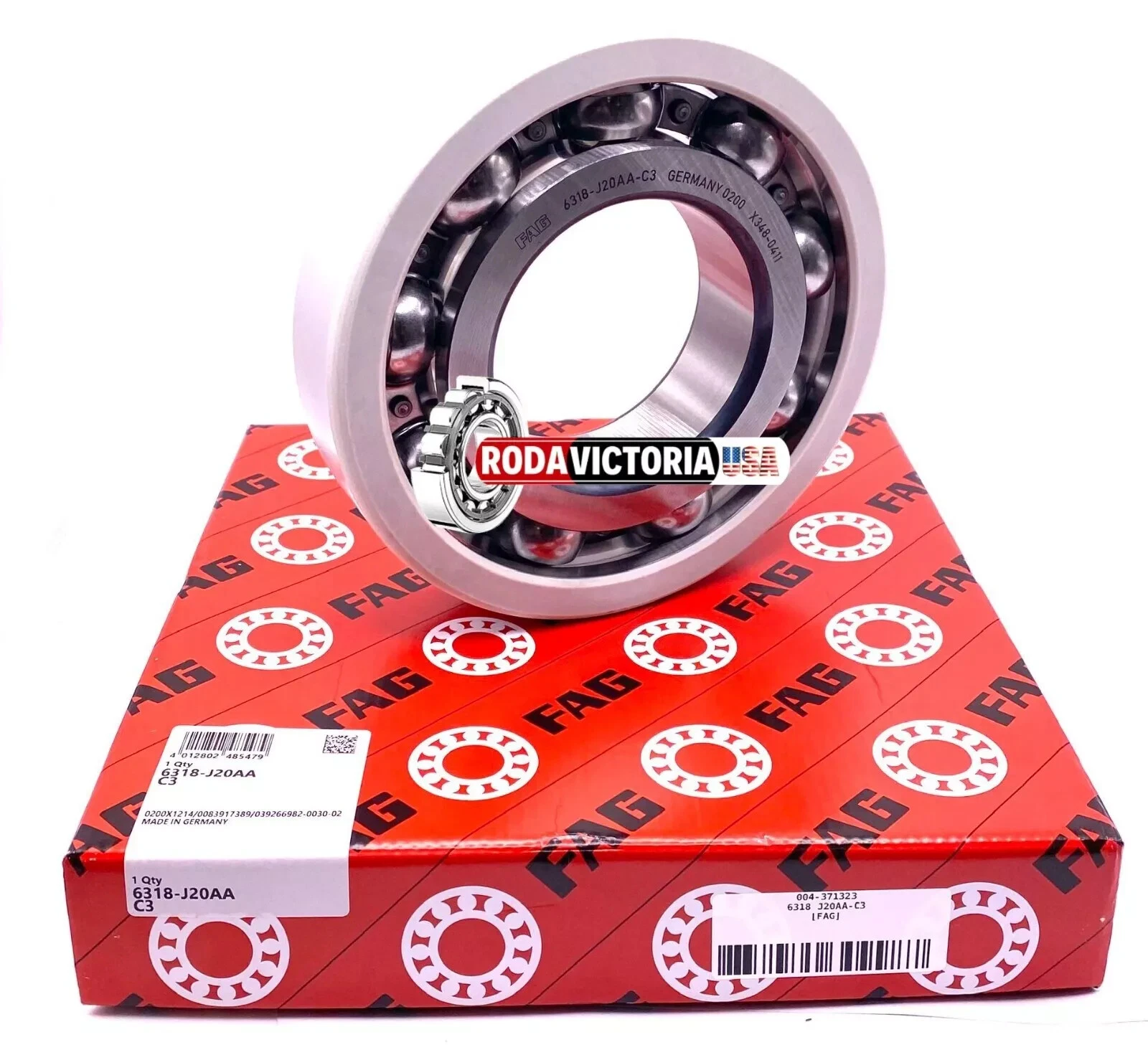

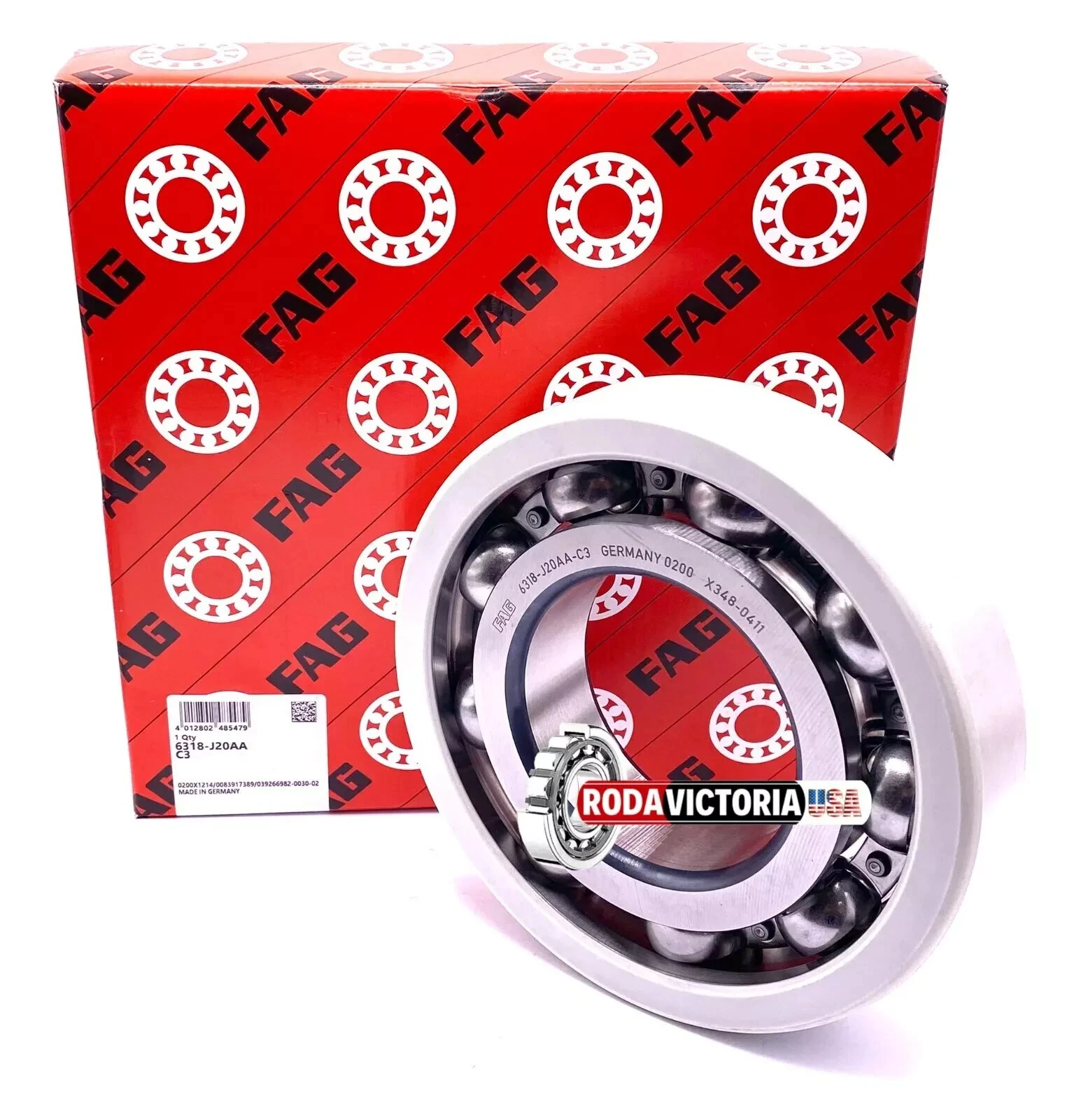

PACKAGE INCLUDES: ONE (1) FAG BEARING 6318 J20AA C3Â
