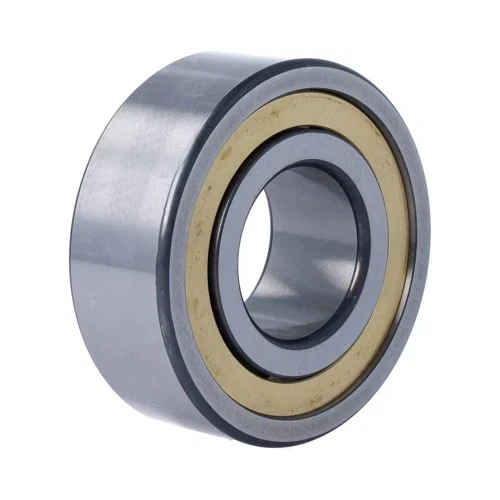

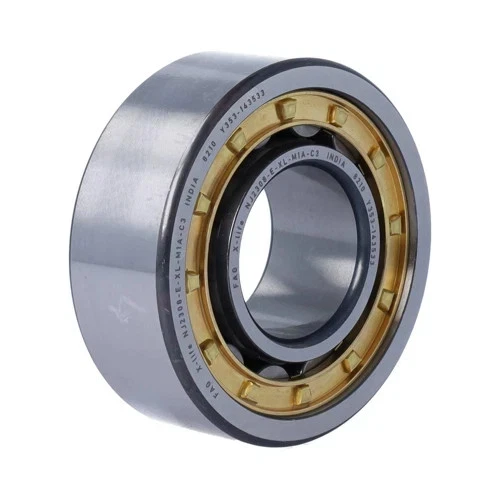

FAG NJ2308 E XL M1A C4 Cylindrical Roller Bearing 40x90x33 mm

Description:

Brand: FAG

Item Number: NJ2308-E-XL-M1A-C4

Manufacturer Part Number: 0192250240040

Also Known As: NJ2308-E-M1A-C4

EAN: 4012801381307

Product Type: Cylindrical Roller Bearing

Category: Cylindrical Roller Bearing, Single Row

Inner Diameter (ID): 40 mm

Outer Diameter (OD): 90 mm

Width: 33 mm

Inner Diameter (ID) Inch: 1.5748 in

Outer Diameter (OD) Inch: 3.5433 in

Width Inch: 1.2992 in

Bore Type: C – Cylindrical Bore

Seal Type: Open / No Seal

Cage Type: MA – Brass Cage, Centered on Outer Ring

Radial Internal Clearance: C4 – Greater Than C3

Precision: Standard Precision / P0-PN / ABEC 1

Temperature Range: -30 °C to +150 °C

Heat Stabilization: No Heat Stabilization – Up to 120 °C

Current Insulation: No Current Insulation

Design: NJ Design / Semi-Locating Bearing / Support Bearing

Roller Rows: Single Row

Weight: 1.065 kg

Dynamic Load Rating (Cr): 132000 N

Static Load Rating (C0r): 119000 N

Limiting Speed: 14200 rpm

Reference Speed: 5800 rpm

Suffix Description:
E: Increased Load Capacity
XL: X-Life
M1A: Solid Brass Cage, Two-Piece, Rib-Guided on Outer Ring
C4: Bearing Internal Clearance Greater Than C3

Description:
High-quality FAG NJ2308-E-XL-M1A-C4 single-row cylindrical roller bearing designed for demanding industrial applications requiring high radial load capacity, rigidity, and reliable operation. This NJ design bearing features two ribs on the outer ring and one rib on the inner ring, allowing it to support heavy radial loads and axial load in one direction.

The separable inner and outer rings make installation and removal easier, especially in maintenance and replacement applications. The solid brass cage provides strength, stability, and reliable roller guidance at higher speeds. The C4 internal clearance offers more internal play than C3, making this bearing suitable for applications where greater thermal expansion or operating conditions require additional clearance.

As an X-Life bearing, this model is designed for enhanced performance compared to standard cylindrical roller bearings, offering higher load capacity, longer service life, reduced heat generation, and extended maintenance intervals.

Features:

• Single-row cylindrical roller bearing
• NJ design for radial loads and axial load in one direction
• Open bearing / no seals
• Solid brass cage
• C4 internal clearance
• Increased load capacity
• X-Life performance design
• Easy installation and disassembly
• Suitable for high-speed and heavy-duty operation

Common Applications:
Suitable for gearboxes, pumps, compressors, electric motors, agricultural machinery, industrial drives, and other heavy-duty applications requiring a 40 x 90 x 33 mm cylindrical roller bearing





PACKAGE INCLUDES: ONE (1) FAG Bearing NJ2308 E XL MIA C4
