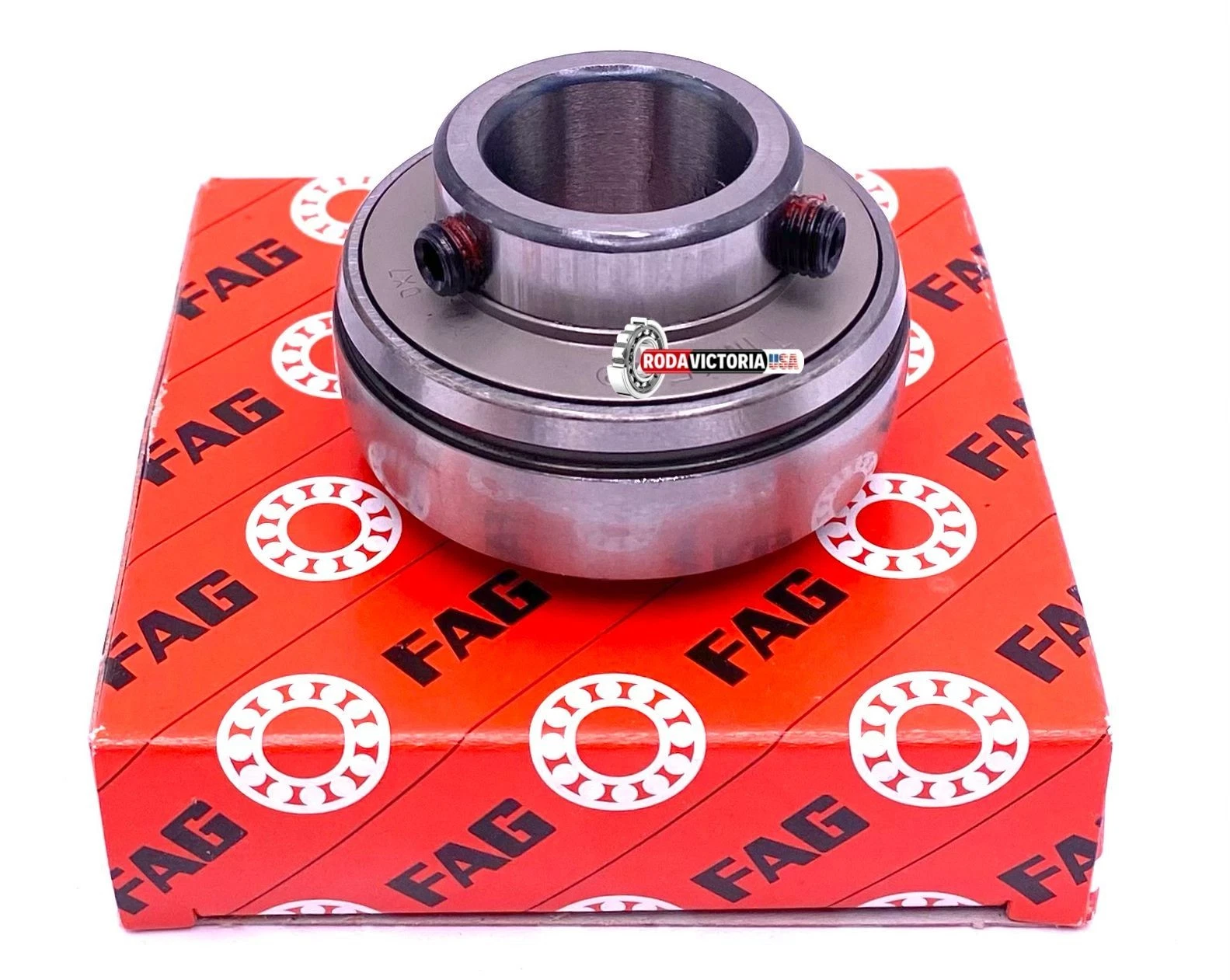

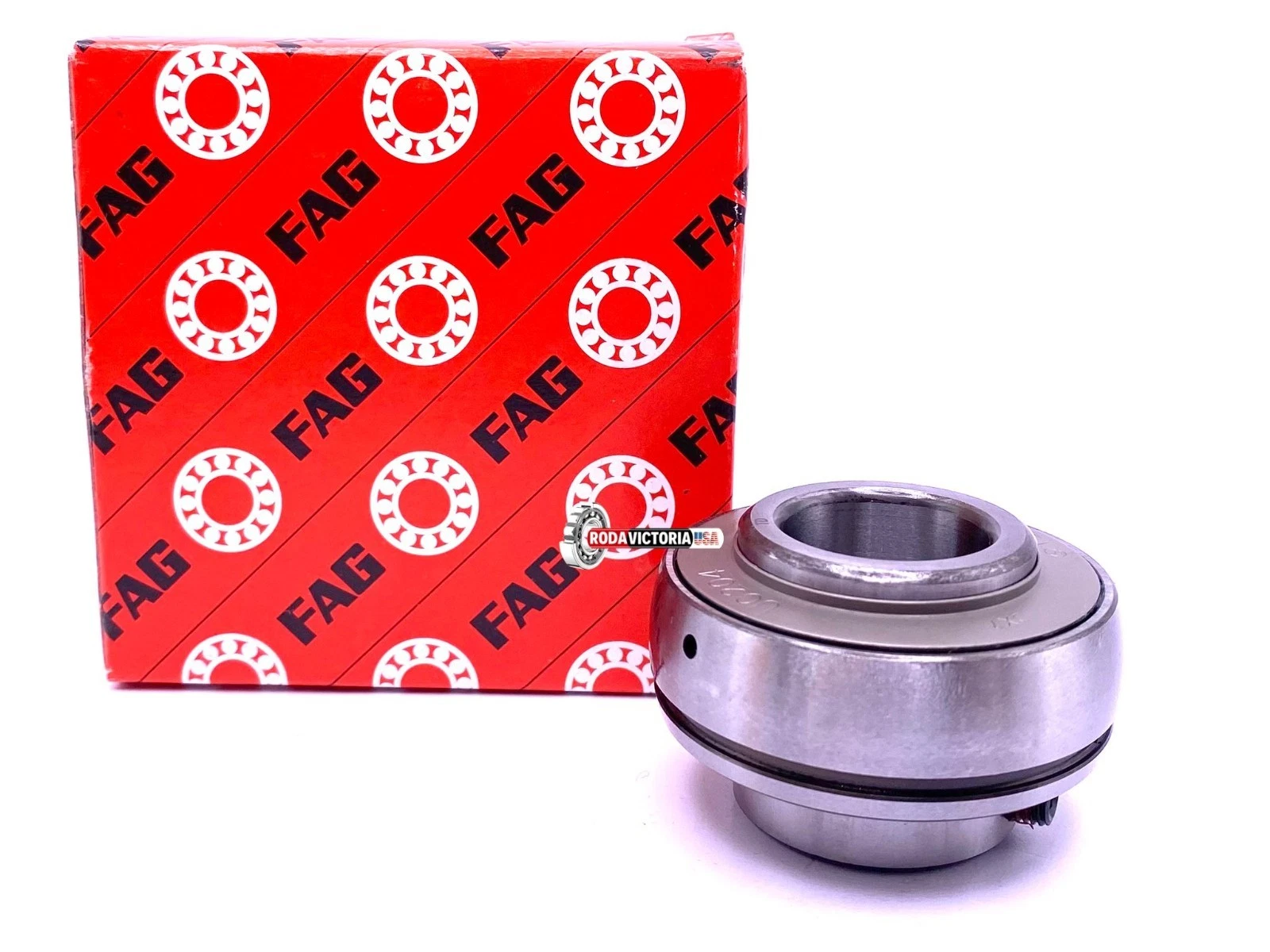

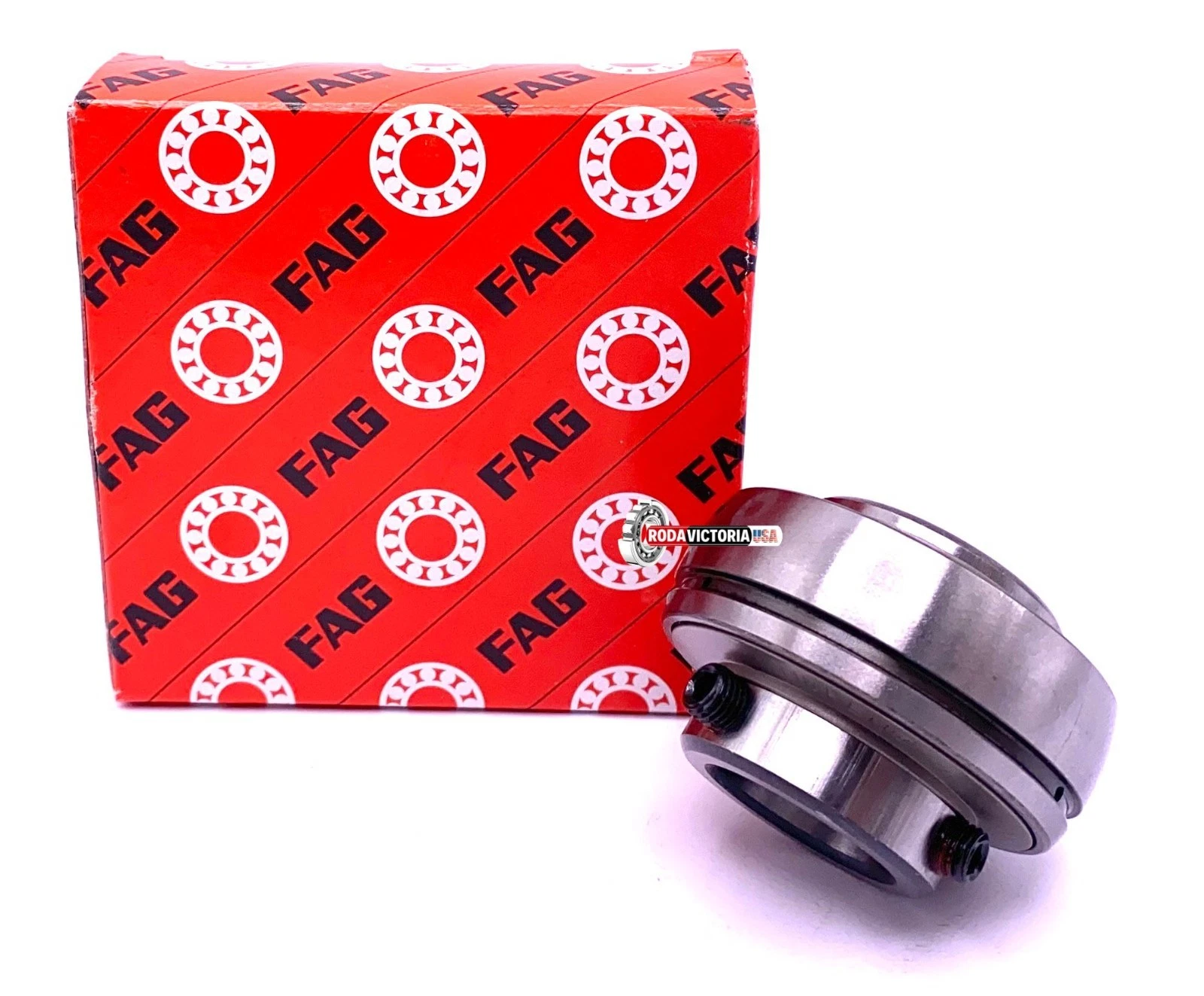

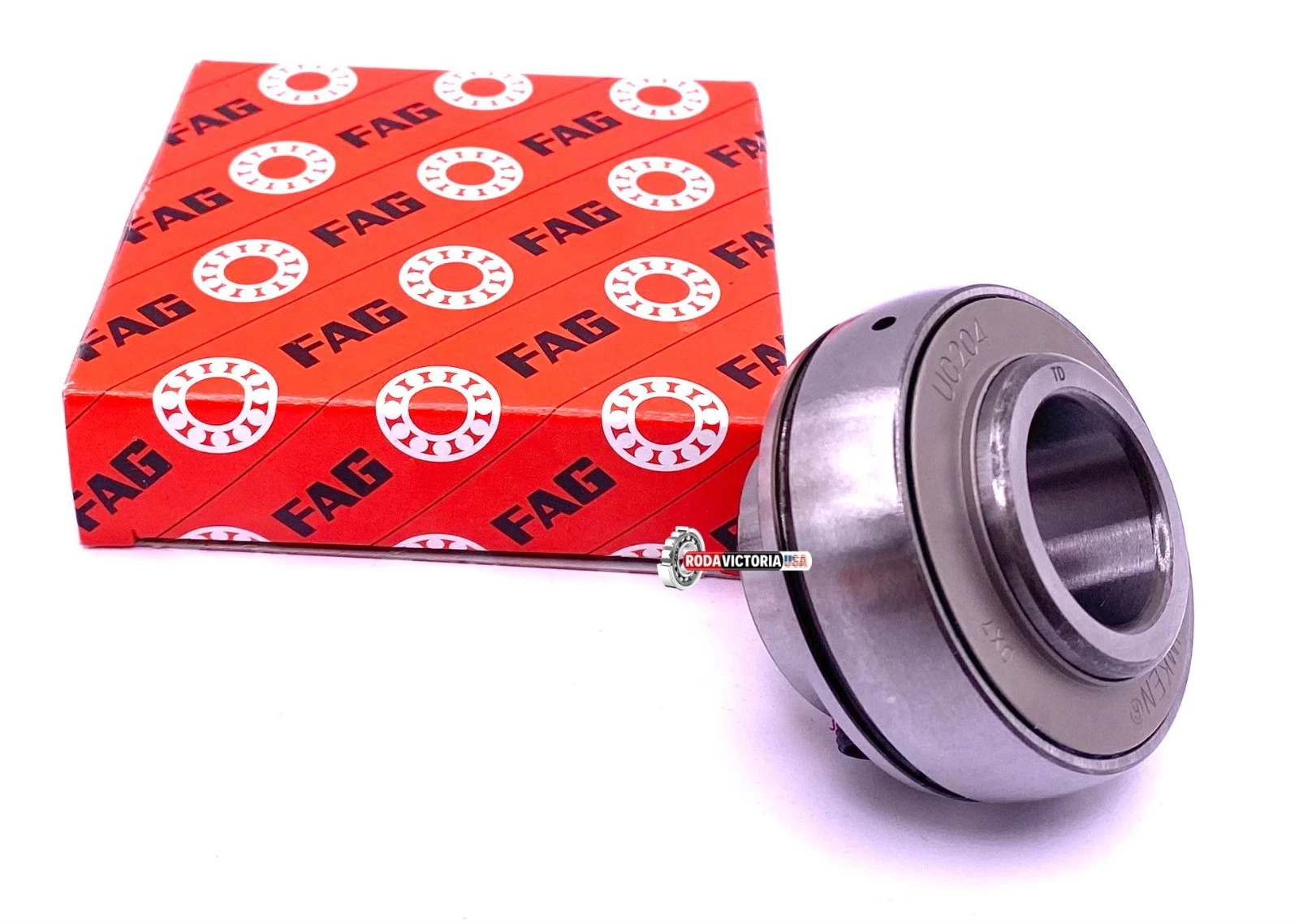

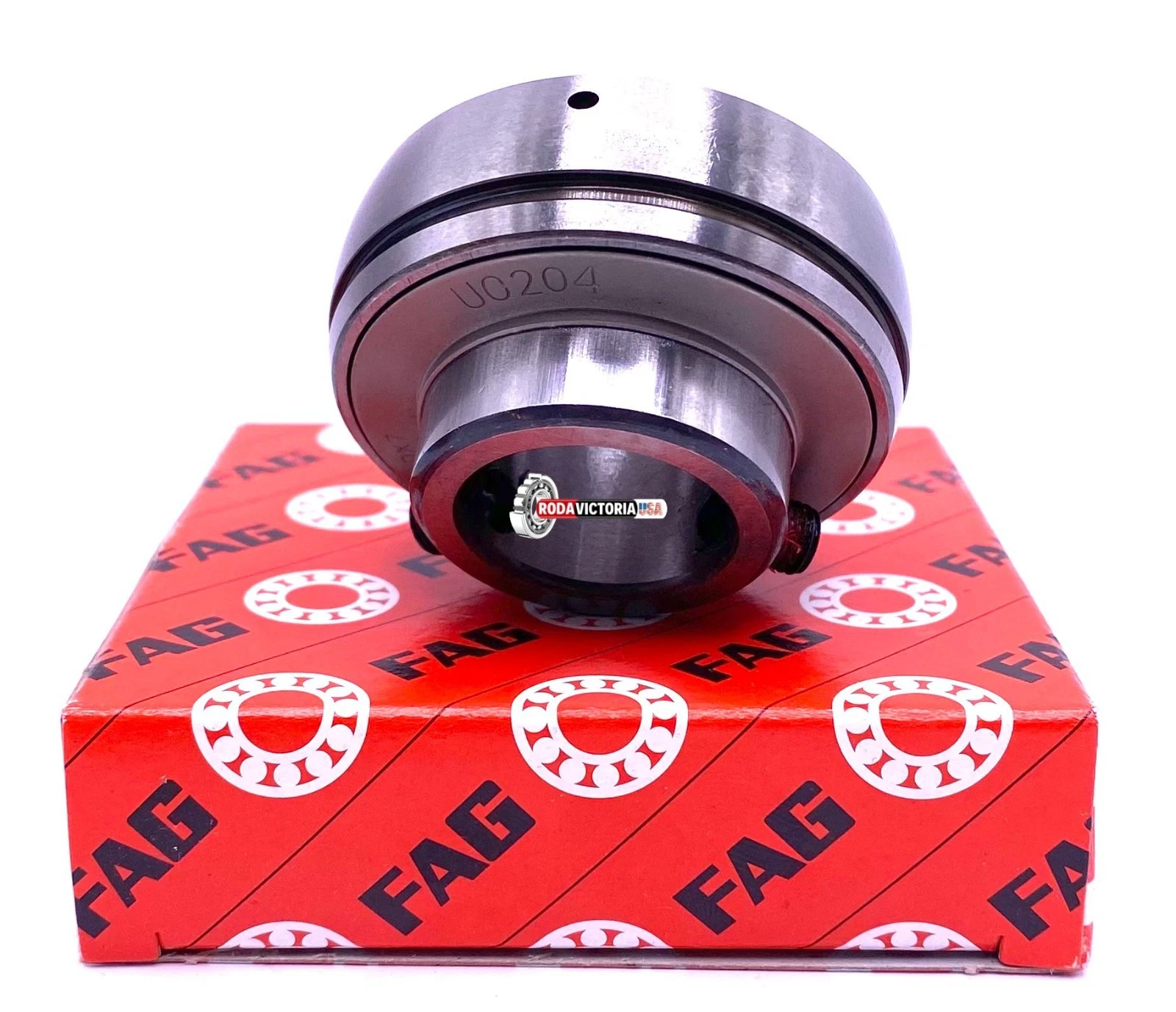

FAG UC204 Insert Ball Bearing GYE20KRRB YAR204-2F 20 mm ID

Description:

Brand: FAG

Item Number: UC204 FAG

Manufacturer Part Number: 0691757050000

EAN: 4012802627862

Product Type: Insert Ball Bearing (Mounted Bearing Insert)

Category: Bearings for Housings / Radial Insert Ball Bearing

Also Known As:
56204
GYE20KRRB
YAR204-2F

Dimensions:
Inner Diameter (d): 20 mm (0.7874 in)
Outer Diameter (D): 47 mm (1.8504 in)
Width (B): 31 mm (1.2205 in)

Weight:
0.14 kg

Bearing Type:
Radial Insert Ball Bearing with Spherical Outer Ring

Inner Ring Design:
Extended Inner Ring on Both Sides

Locking Method:
Set Screw Locking (Threaded Pins)

Seal Type:
Double-Sided Contact Seal (RSR) with Protective Flinger

Cage Type:
Polyamide Cage

Radial Dynamic Load Rating (Cr):
13,600 N

Radial Static Load Rating (C0r):
6,600 N

Lubrication:
Pre-lubricated with lubrication hole(s) for relubrication

Precision Class:
Standard Precision (P0 / PN2 / ABEC 1)

Operating Temperature Range:
-20 °C to +120 °C

Product Description:
The FAG UC204 is a radial insert ball bearing designed for mounted bearing units such as pillow block, flange, and take-up housings. It features a spherical outer ring that allows self-alignment within the housing, helping compensate for minor shaft misalignment.

The bearing includes an extended inner ring with set screw locking, ensuring secure shaft attachment and reliable operation. The double-sided contact seals (RSR) with flinger protection help prevent contamination while retaining lubrication for longer service life.

Manufactured by FAG / Schaeffler, this insert bearing offers high durability, reliable performance, and easy maintenance for a wide range of industrial applications.

Key Features:
• High-quality FAG insert bearing for mounted units
• Spherical outer ring for self-alignment in housings
• Extended inner ring with set screw locking system
• Double-sided RSR contact seals with flinger protection
• Polyamide cage for reduced friction and smooth operation
• Pre-lubricated with relubrication capability
• Suitable for pillow block, flange, and take-up bearing units

Typical Applications:
Industrial machinery, conveyors, agricultural equipment, packaging machinery, fans, and material handling systems.





PACKAGE INCLUDES: ONE (1) FAG Bearing UC204
