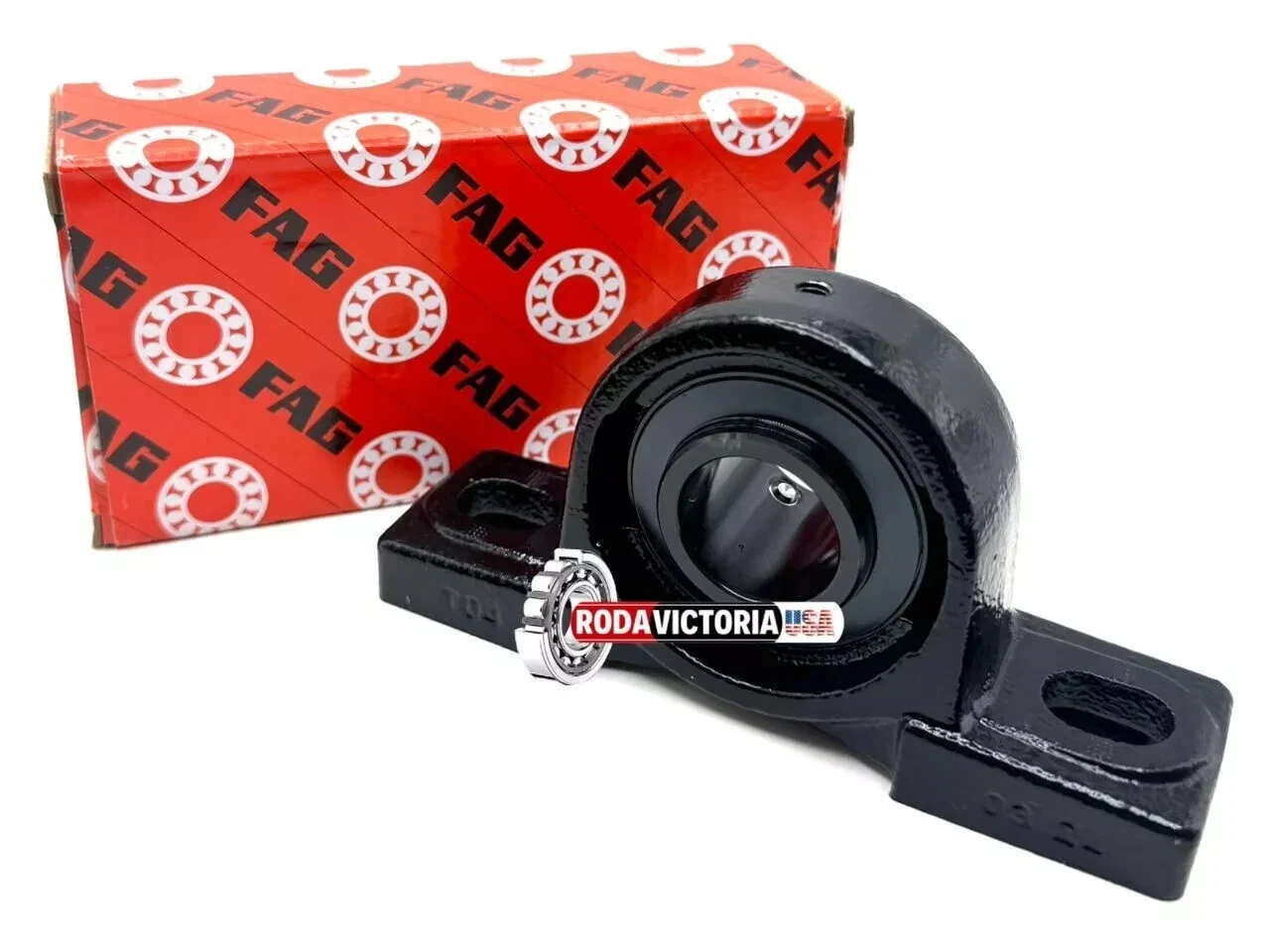

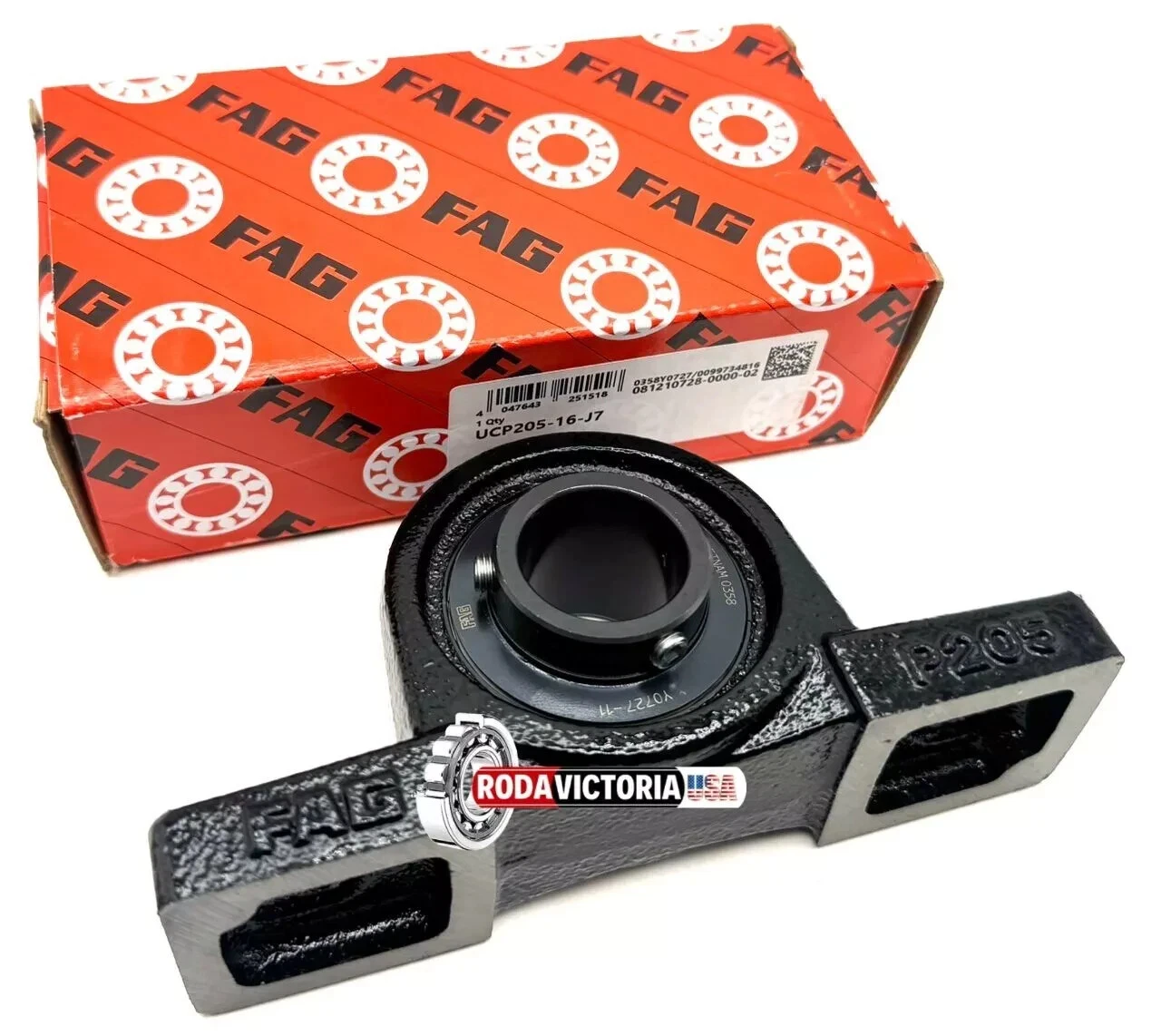

FAG UCP205-16-J7 Housing and Bearing Assembly SY1 TF 1”

Description:

FAG UCP205 16 J7 HOUSING AND BEARING ASSEMBLY

Product characteristics

• Brand FAG
• Item Number UCP205-16-J7 FAG
• Manufacturer Part Number 0812107280000
• Also known as 56205.100 + SG205S
  SG56205.100
  SYJ1.TF
  UC205-16 + P205-J7
  YAR205-100-2F + SYJ505
• EAN4047643251518
• Category Housing and Bearing (assembly)

Weight and Dimensions

• Inner (d) MM 25,4
• Outer (D) MM 140
• Width (B) MM 38
• Inner (d) Inch 1
• Outer (D) Inch 5.5118
• Width (B) Inch 1.4961
• Weight (kg) 0.71

Product Properties

• Seal2F – Standard Seal for Y-bearings
• Lubrication Standard Lubrication
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Length total (L) mm140
• Height (H 2) mm71
• ECLASS number23-05-16-01
• ECLASS2 number23-05-16-01
• Medias description Plummer block housing units UCP, cast iron housing, with long base, radial insert ball bearing with grub screws in inner ring, RSR seals

Suffix description

• 161″ Bore
• J7 This Suffix Is The Standard With A Better Fitting In The Housing

Product description

The UCP205-16-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing’s lifespan.

Package Includes: FAG UCP205 16 J7 HOUSING AND BEARING ASSEMBLY
