Description:
Product characteristics
Category:Oil seals
Material:NBR (Perbunan)
Temperature range:-30 to +100 °C
Version:Rubber coating
Pressure resistance:Up to 0.5 bar max.
Dust lip/Protective lip:With
Tension spring:Non-alloy steel
Weight:0,010 kg
ProductID:10024850
Customs tariff number:8487 9090
EAN:not available
Manufacturer part number:67017181
Dimensions
Inner dimension: 30,000 mm
Outer dimension: 47,000 mm
Width: 7,000 mm

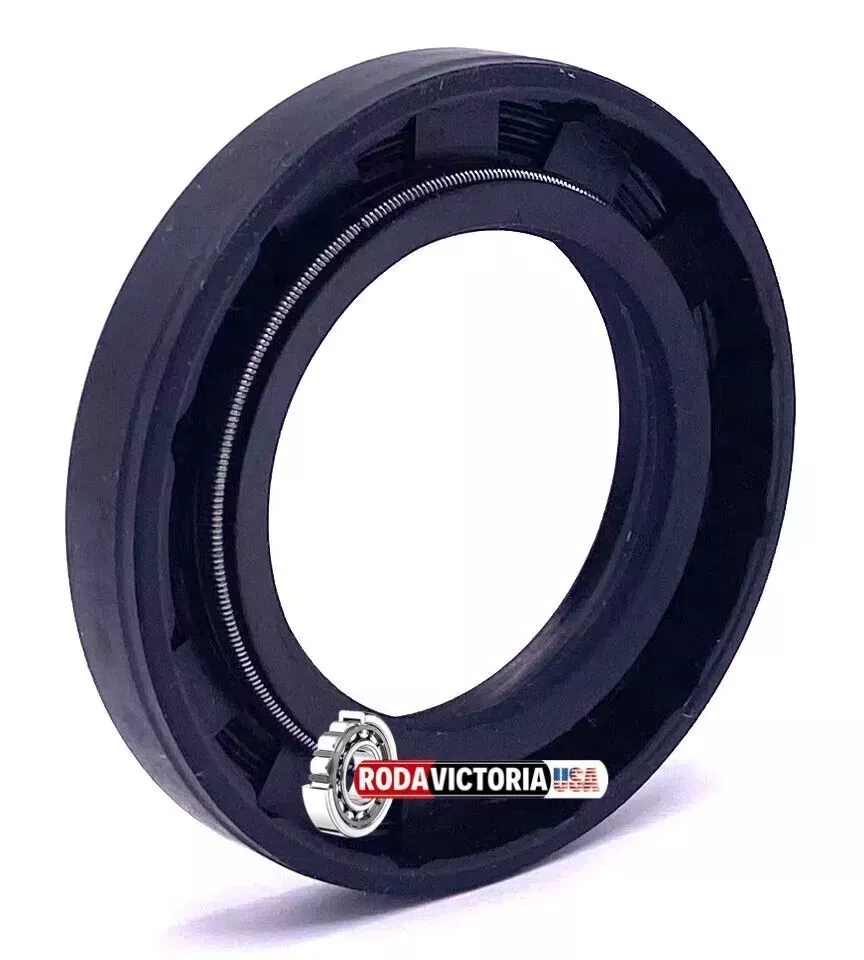

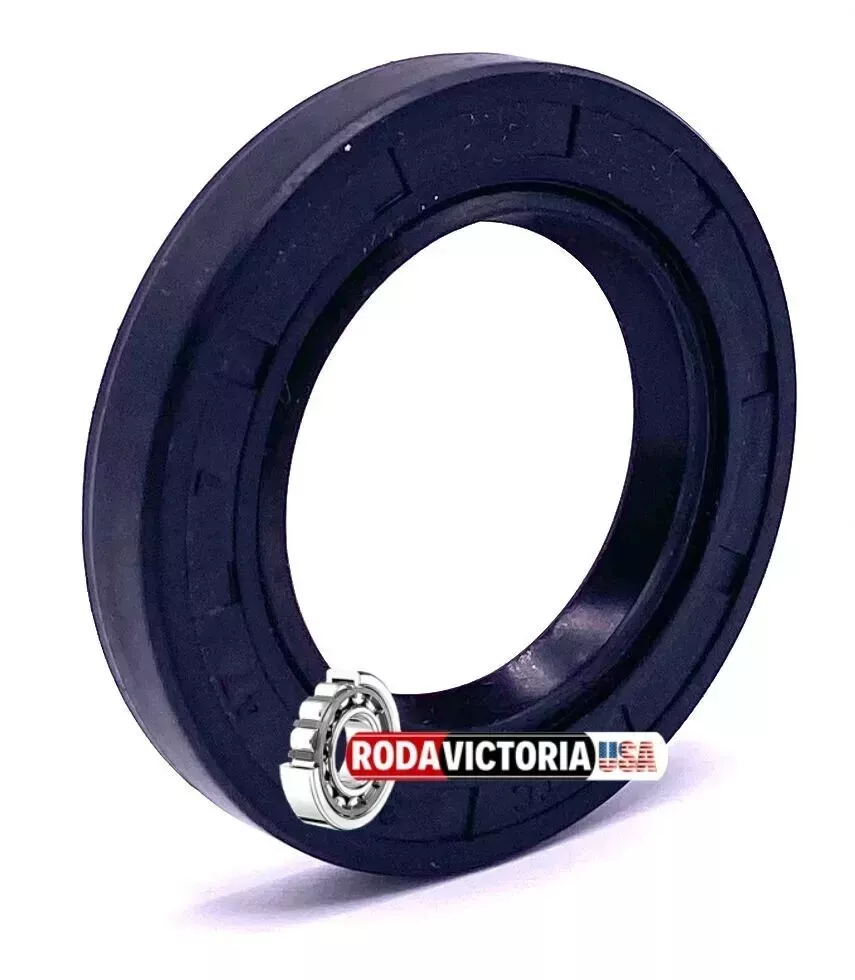

Final Driven Gear / Rear Wheel Oil Seal – 30x47x7 – Honda CX/GL500 CB600/900 CBR600/900 CBR/GL650 CTX/NC/NT700 NC750 CRF/VTR1000 CTX1300
This oil seal is found in the Final Driven Gear on some pre-1984 models or the rear wheel on some newer models. When it’s used on the rear wheel it’s considered a dust seal. See the fitment list for where it was used.
This is a high quality new seal produced in Taiwan. When it comes to rubber parts and seals it’s generally better to install a brand new part instead of using a NOS part which has hardened due to age.
A great way to isolate where an oil leak is coming from is to clean the area thoroughly, put some baby powder on the area you suspect it’s coming from, then go for a 5-10 minute ride. Voila, the leaks location is revealed! Clean everything thoroughly and install the new seal with a deep socket with the same outer diameter as the seal or a seal driver. Make sure to push it in evenly. An oil tight engine puts the mind at ease and it keeps the engine lubricated!
*Sometimes a light coating of three-bond or hondabond is necessary to keep the seal from popping back out if you have a recurring problem. We have Hondabond available.
Replaces Honda Part Numbers: 91264-415-003, 91253-MAE-003
Dimensions: 30x47x7 (also replaces 30x47x7.5)
Material: NBR (Nitrile)
Fits Honda:
CX500 – 1978-1979 – Final Driven Gear
CX500C Custom – 1979-1982 – Final Driven Gear
CX500D Deluxe – 1979-1981 – Final Driven Gear
CX500TC Turbo – 1982 – Final Driven Gear
GL500 Silver Wing – 1981-1982 – Final Driven Gear
GL500I Silver Wing Interstate – 1981-1982 – Final Driven Gear
CB600F – 2004 + 2006 – Rear Wheel
CBR600F3 – 1995-1998 – Rear Wheel
CBR600F4 – 1999-2006 – Rear Wheel
CBR600SE – 1998 – Rear Wheel
CBR600SJR – 1996 – Rear Wheel
CBR650F – 2014-2016 + 2018 – Rear Wheel
GL650 Silver Wing – 1983 – Final Driven Gear
GL650I Silver Wing Interstate – 1983 – Final Driven Gear
CTX700/D/N/ND – 2014-2018 – Rear Wheel
NC700JD – 2015 – Rear Wheel
NC700X/XD – 2012-2017 – Rear Wheel
NT700V – 2010-2011 – Rear Wheel
NC750X/XD – 2018 – Rear Wheel
CB900F – 2002-2007 – Rear Wheel
CBR900RR – 1995-1999 – Rear Wheel
CRF1000A/D – 2016-2017 – Rear Wheel
VTR1000F – 1998-2005 – Rear Wheel
CTX1300 – 2014 – Rear Wheel
Package Includes: ONE (1) DICHTOMATIK OIL SEAL 30x47x7 mm
