Description:

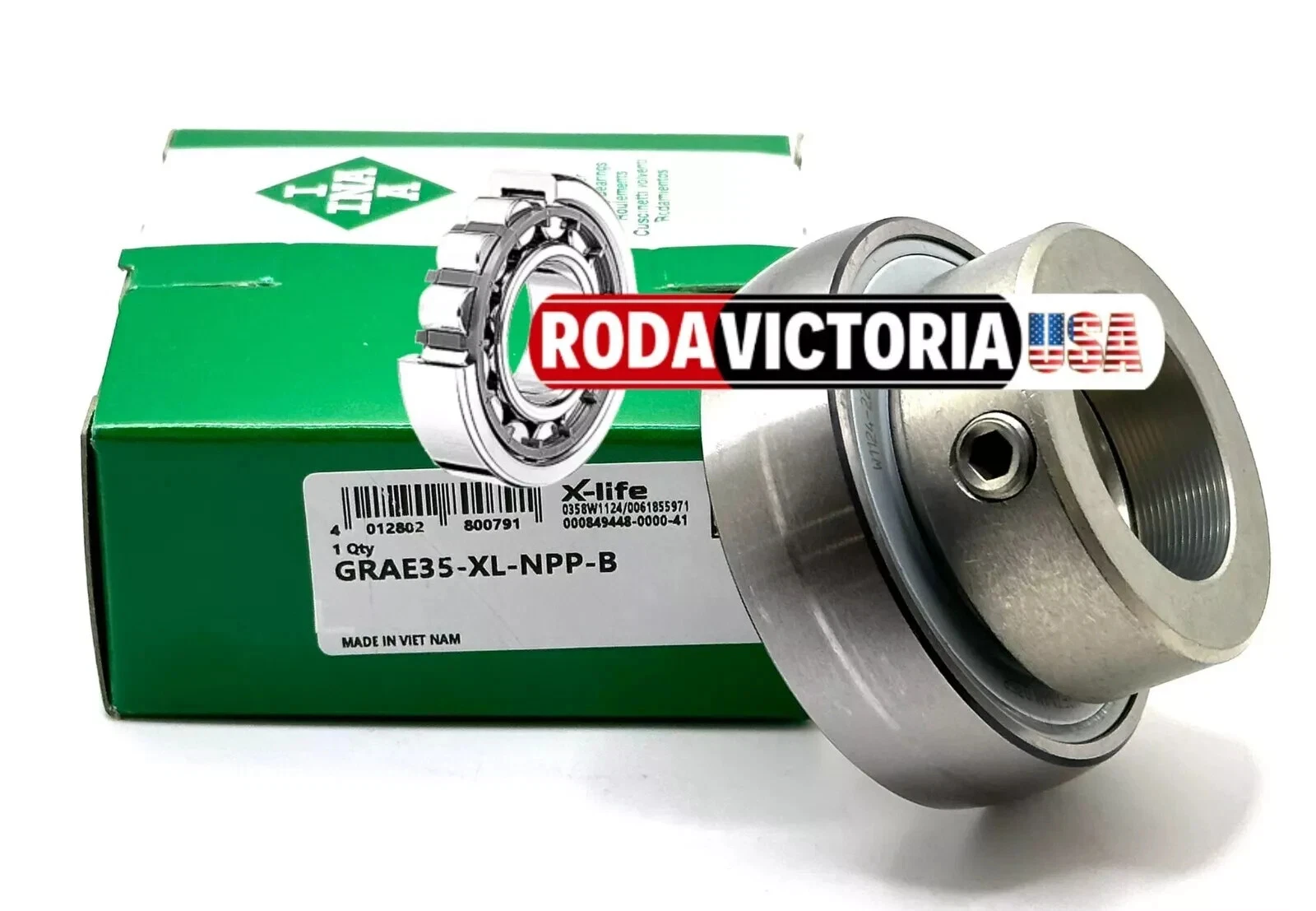

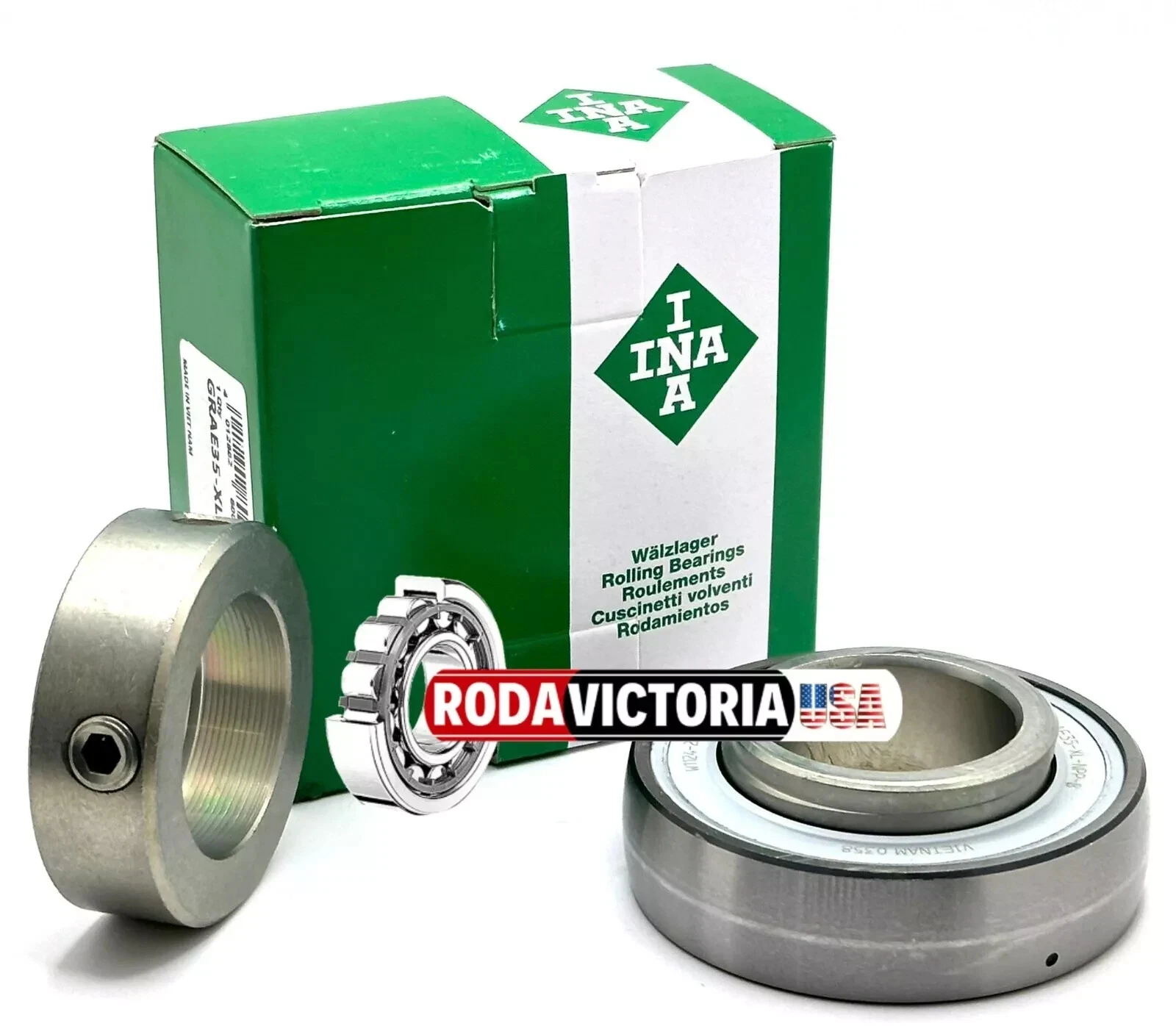

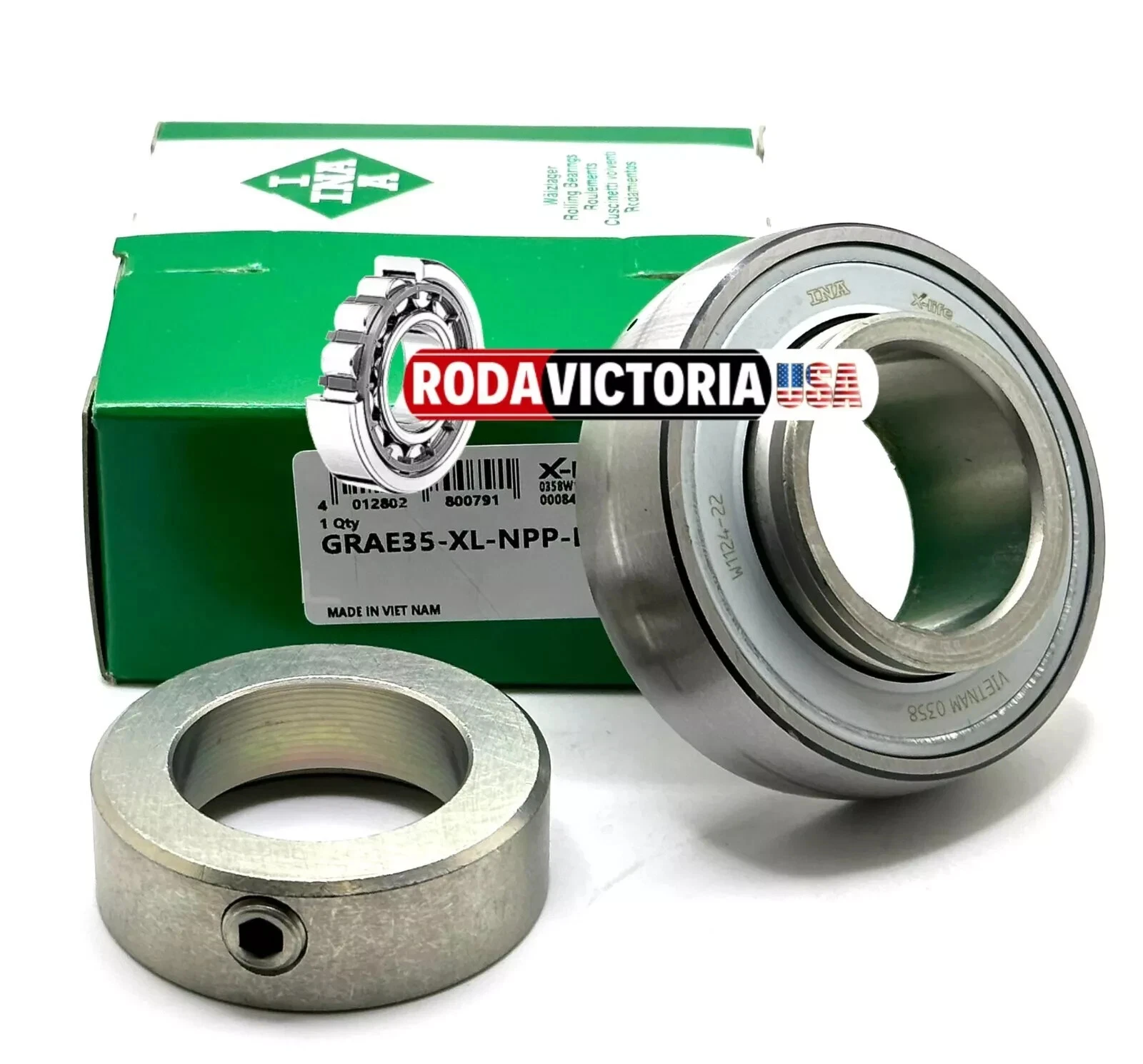

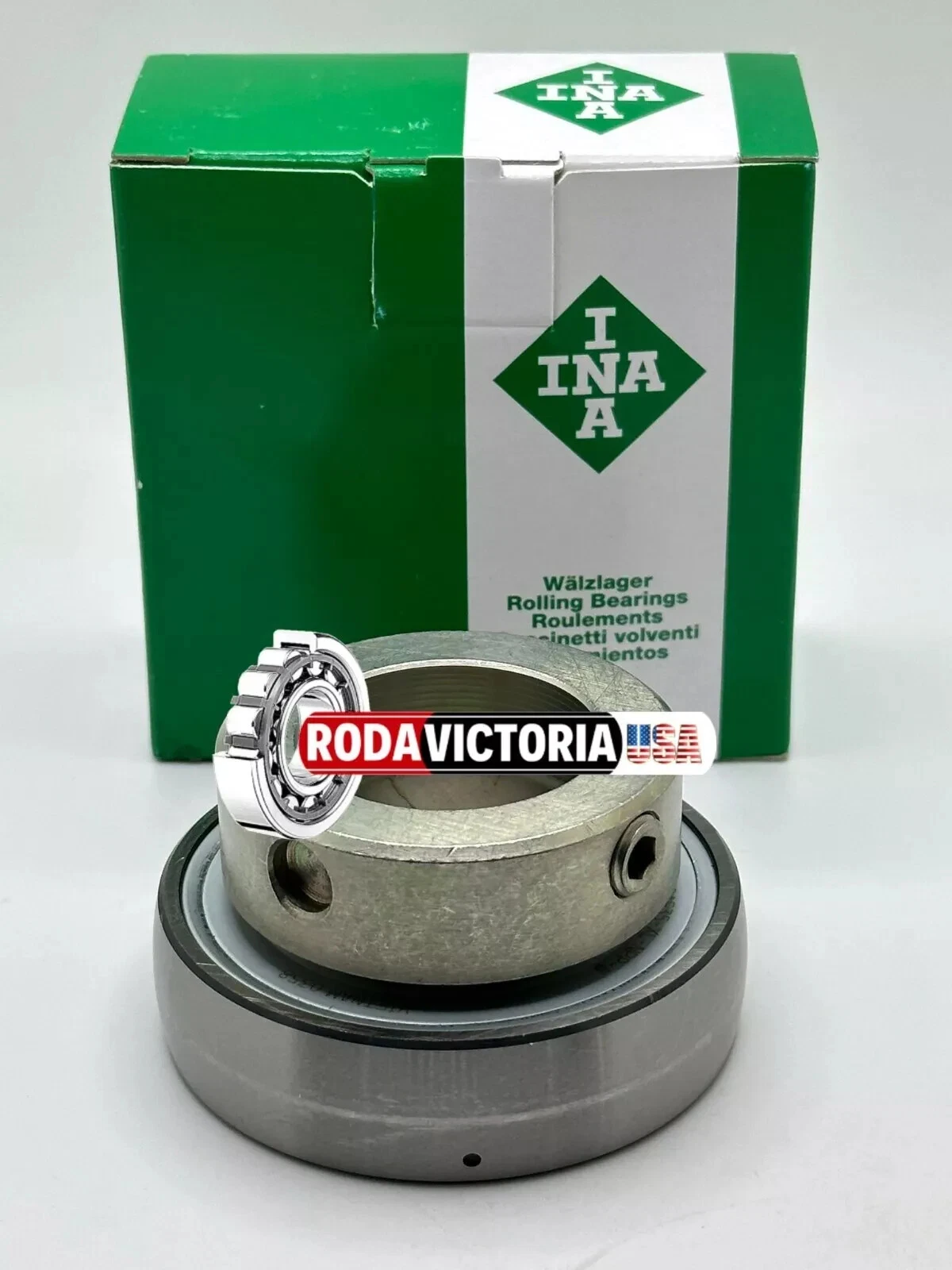

This INA GRAE35 NPPB B FA107 Insert Ball Bearing + Locking Collar YET207 is a top-quality product that is perfect for various industrial applications. It is made in Slovakia and has a bearing and bushing part type of INSERT BALL BEARING + LOCKING COLLAR. The product measures 35x72x39 mm and is designed to provide efficient performance and reliable service. It is suitable for use in mechanical power transmission and industrial automation & motion controls. The brand of this product is INA and it has a model number of GRAE35 NPPB B FA107. It is classified under Other Bearing & Bushing Parts, Bearing & Bushing Parts, Bearings & Bushings, and Business & Industrial categories. This product is an excellent choice for those who are looking for a high-quality bearing and bushing part that is designed to provide optimal performance and durability.
Specifications
- BrandINA
- Item NumberGRAE35-NPP-B-FA107 INA
- Manufacturer Part Number0004901560000
- Also known asYET207
- EAN4012802784848
- Category Bearings for Housings
Weight and Dimensions
- Inner (d) MM35
- Outer (D) MM72
- Width (B) MM38,9
- Inner (d) Inch1.378
- Outer (D) Inch2.8346
- Width (B) Inch1.5315
- Weight (kg)0.48
Product Properties
- Seal2F – Standard Seal for Y-bearings
- Lubrication Standard Lubrication
- Special Treatment I – Lubrication  Holes on Locating Side
Data from Schaeffler (medias)
- Outside diameter (D SP) mm72
- Width (b) mm25,4
- Locking collar total width (B 1) mm39
- Radial Static Load Rating C0r (N)15300
- Radial Dynamic Load Rating Cr (N)27500
- Basic static load rating, radial (C 0r)“15300.0000”
- ECLASS number23-05-08-02
- ECLASS2 number23-05-08-02
- Medias description Radial insert ball bearing GRAE..-NPP-B
Suffix description
- NPPÂ Lip Seals On Both Sides (P Type – Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
- FA107Bearing With Lubrication Holes On The Locating Side
Â
Package Includes: ONE INA Bearing GRAE35 NPPB B FA107
