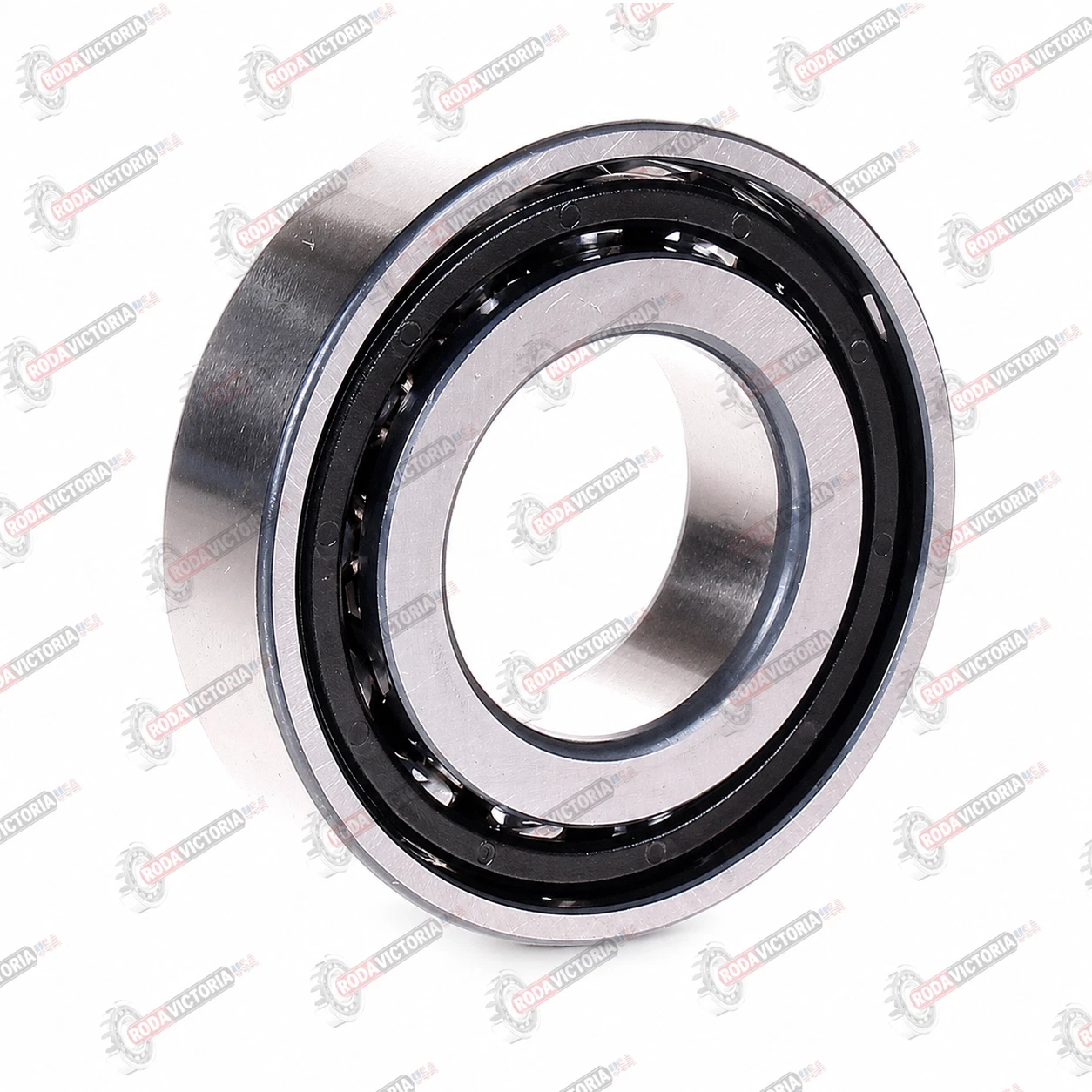

INA LR205 2RSR Support Roller / Yoke Type Track Roller 25x62x15 mm

Description:

Brand: INA
Part Number: LR205-2RSR
Alternate Part Numbers: 567405, LR205NPPU
EAN: 4012802825114
Category: Support Roller / Yoke Type Track Roller
Manufacturer Part Number: 0502741630000
Product ID: 10209463

Inner Diameter (d): 25 mm / 0.9843 in
Outer Diameter (D): 62 mm / 2.4409 in
Width (B): 15 mm / 0.5906 in
Height (C): 15 mm
Weight: 0.23 kg

Seal Type: 2RSR Rubber Seals on Both Sides
Running Surface: Standard
Bearing Type: Single Row Track Roller
Ball Rows: Single Row
Outer Ring: Spherical Outside Surface
Cage Type: Polyamide Cage
Version: Widened Inner Ring on Both Sides
Eccentric Collar: Without Eccentric Ring
Temperature Range: -20 °C to +120 °C

Basic Dynamic Load Rating, Radial (Crw): 13,300 N
Basic Static Load Rating, Radial (C0r): 7,300 N
Speed with Permanent Grease Lubrication (nDG): 7,000 rpm

Suffix Meaning:
2RSR: Rubber seals at each side of the bearing

Description:
The INA LR205-2RSR is a single row yoke type track roller designed for use on flat counter tracks rather than in a housing bore. It combines low friction and high running precision, while the thick-walled outer ring helps it withstand high radial loads. It can also accommodate axial loads in both directions caused by minor alignment errors or misalignment.

This support roller uses a polyamide cage to keep the rolling elements separated, reducing friction and heat generation compared with full complement designs. That allows higher operating speeds and smoother motion. Common applications include conveyor systems, linear guidance systems, and cam mechanisms.

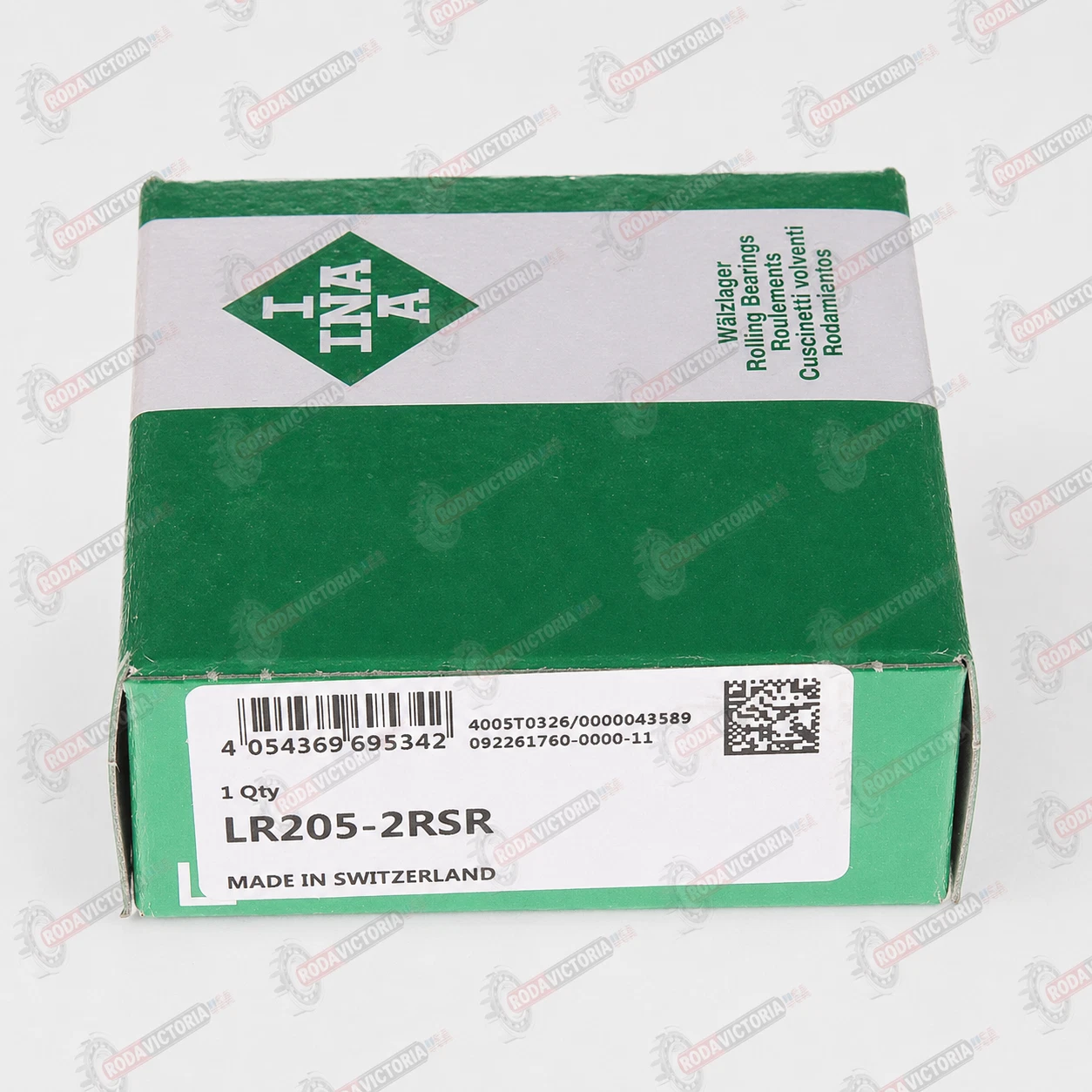

   PACKAGE INCLUDES: ONE (1) INA Bearing LR205 2RSR
