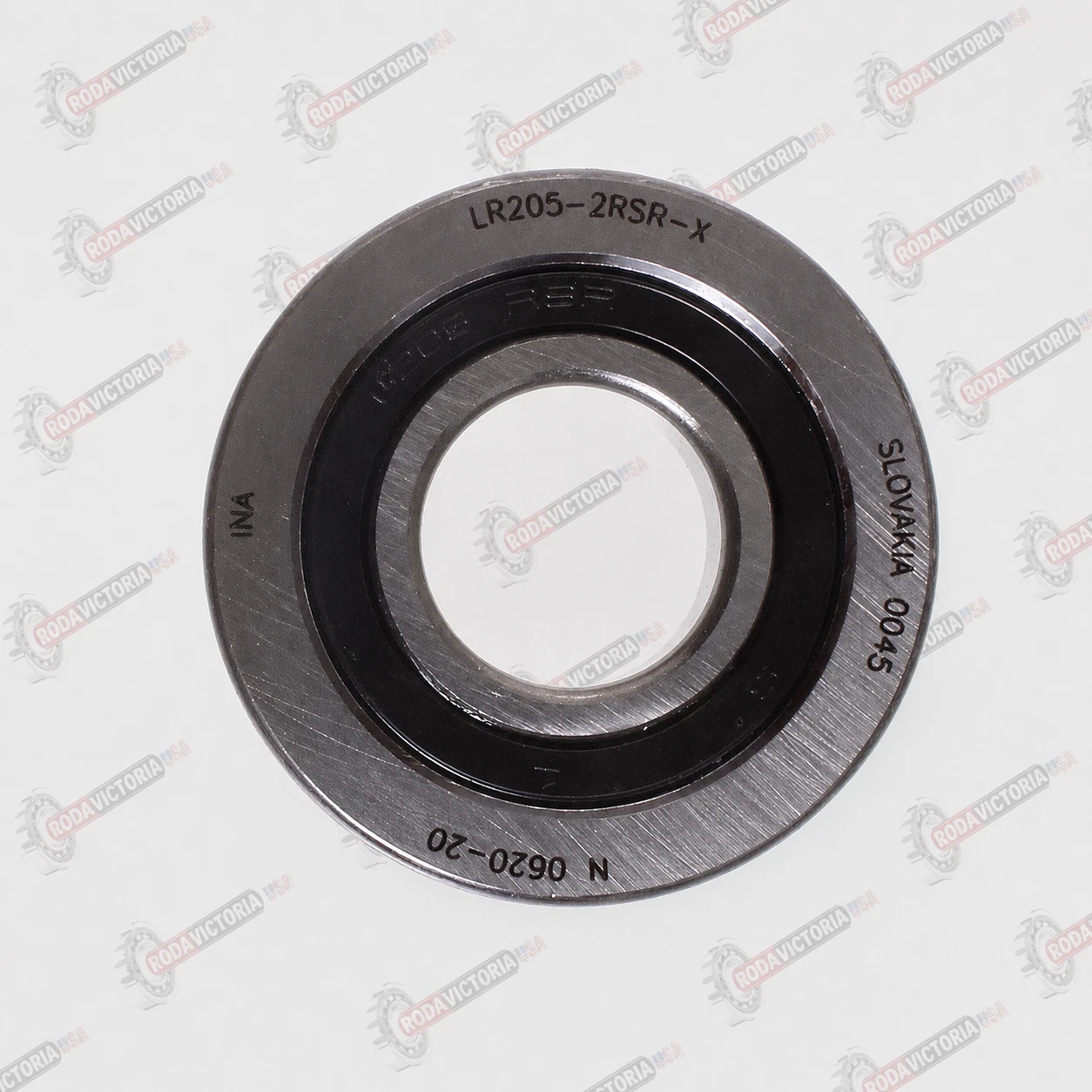

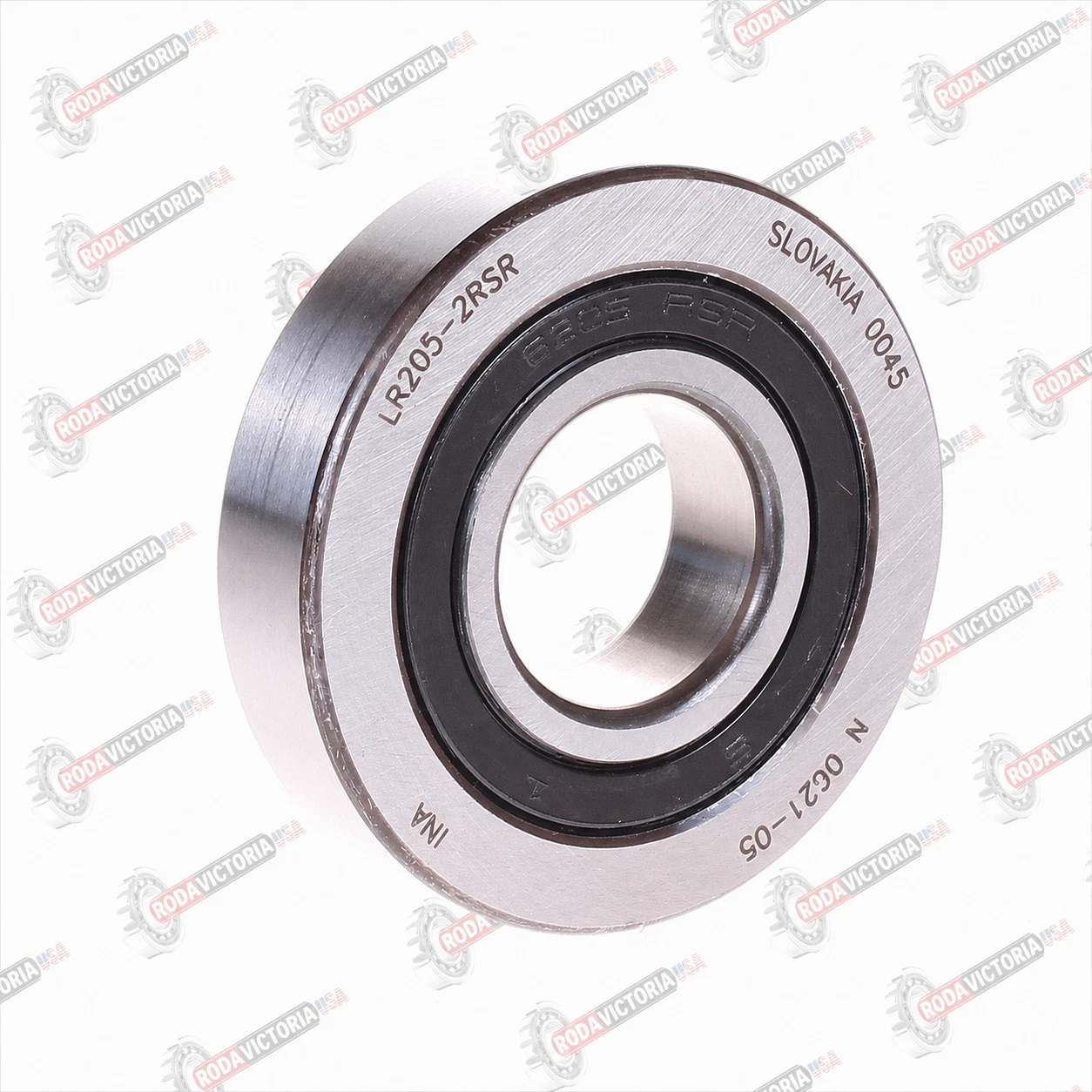

INA LR205 X 2RSR Support Roller / Yoke Type Track Roller 25x62x15 mm

Description:

Brand: INA
Part Number: LR205-X-2RSR
Alternate Part Numbers: LR205NPP
Manufacturer Part Number: 0503665130000
EAN: 4012802824773
Category: Support Roller

Inner Diameter (d): 25 mm / 0.9843 in
Outer Diameter (D): 62 mm / 2.4409 in
Width (B): 15 mm / 0.5906 in
Height (C): 15 mm
Weight: 0.23 kg

Bearing Type: Yoke Type Track Roller
Ball Rows: Single Row
Running Surface: Cylindrical
Outer Ring: Cylindrical Outside Surface
Seal Type: Lip Seal on Both Sides
Cage Type: Polyamide Cage
Version: Widened Inner Ring on Both Sides
Eccentric Collar: Without Eccentric Ring
Temperature Range: -20 °C to +120 °C

Basic Dynamic Load Rating, Radial (Crw): 13,300 N
Basic Static Load Rating, Radial (C0r): 7,300 N
Speed with Permanent Grease Lubrication (nDG): 7,000 rpm

Suffix Meaning:
X: Cylindrical Running Surface
2RSR: Rubber Seals at Each Side of the Bearing

Predecessor: LR205-NPP

Description:
The INA LR205-X-2RSR is a single-row yoke type track roller designed for applications requiring low friction, high precision, and strong radial load capacity. Its thick-walled outer ring allows it to handle heavy radial loads, while axial loads caused by slight misalignment can be absorbed in both directions.

This support roller is intended for mounting on a shaft and runs against a flat counter track rather than inside a housing bore. The polyamide cage keeps the rolling elements separated for smoother operation, less heat generation, and higher operating speeds compared with full complement designs.

Common applications include conveyor systems, linear guidance systems, and cam mechanisms.

   PACKAGE INCLUDES: ONE (1) INA Bearing LR205 X 2RSR
