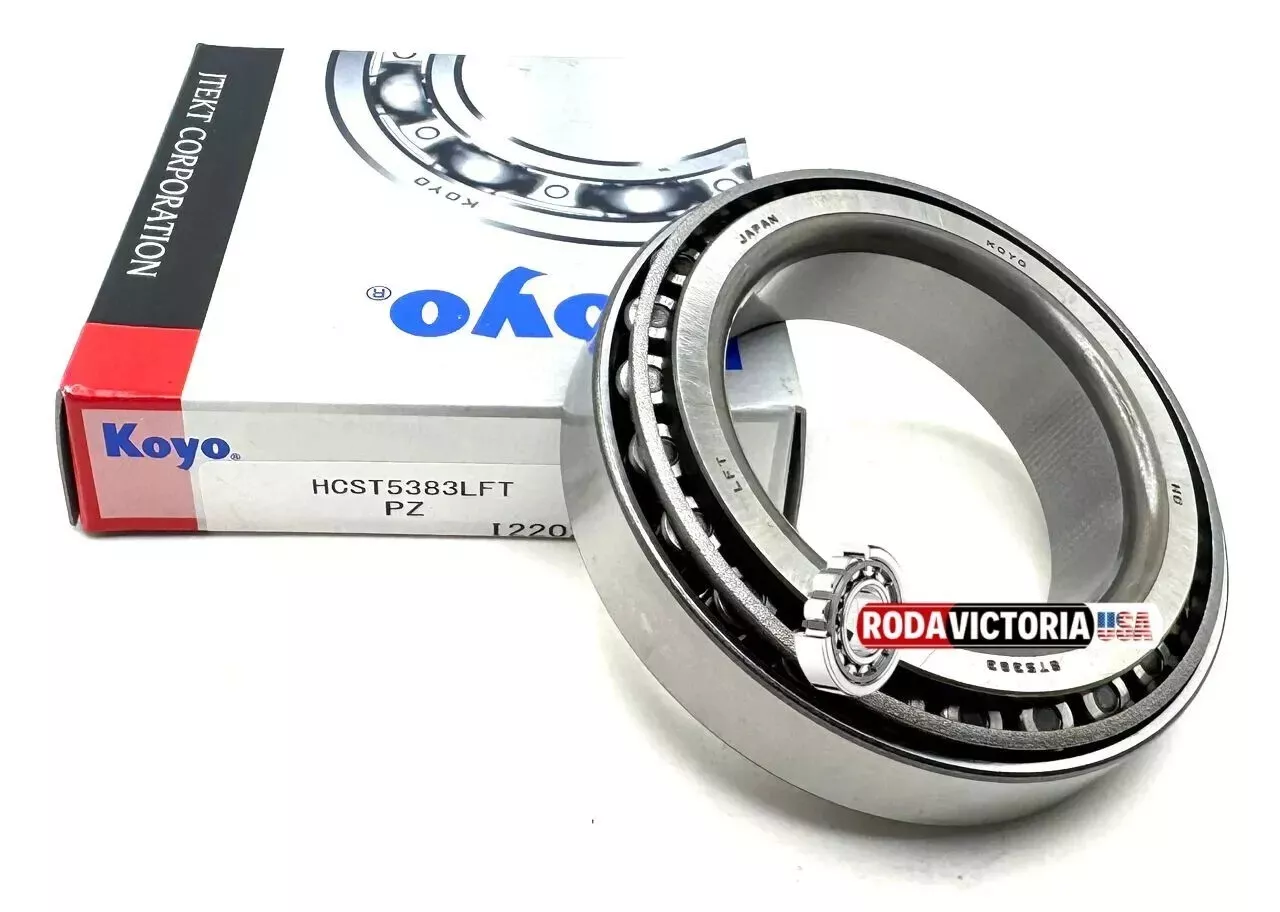

KOYO Japan ST5383 LFT Differencial Bearing for Toyota 90366-T0010 53x83x24 mm

Description:

• Brand Koyo (JTEKT)
• Item Number ST5383LFT Koyo (JTEKT)
• Category Tapered Roller Bearing Single Row

Weight and Dimensions

• Inner (d) MM 53
• Outer (D) MM 83
• Width (B) MM 24
• Inner (d) Inch 2.0866
• Outer (D) Inch 3.2677
• Width (B) Inch 0.9449
• Weight (kg) 0.407

Product Properties

• Precision Standard Precision

Suffix description

• LFT Low Torque Taper Roller Bearing

Product description

The ST5383LFT Koyo (JTEKT) is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The ST5383LFT Koyo (JTEKT) is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Package Includes: One (1) KOYO Bearing ST5383
