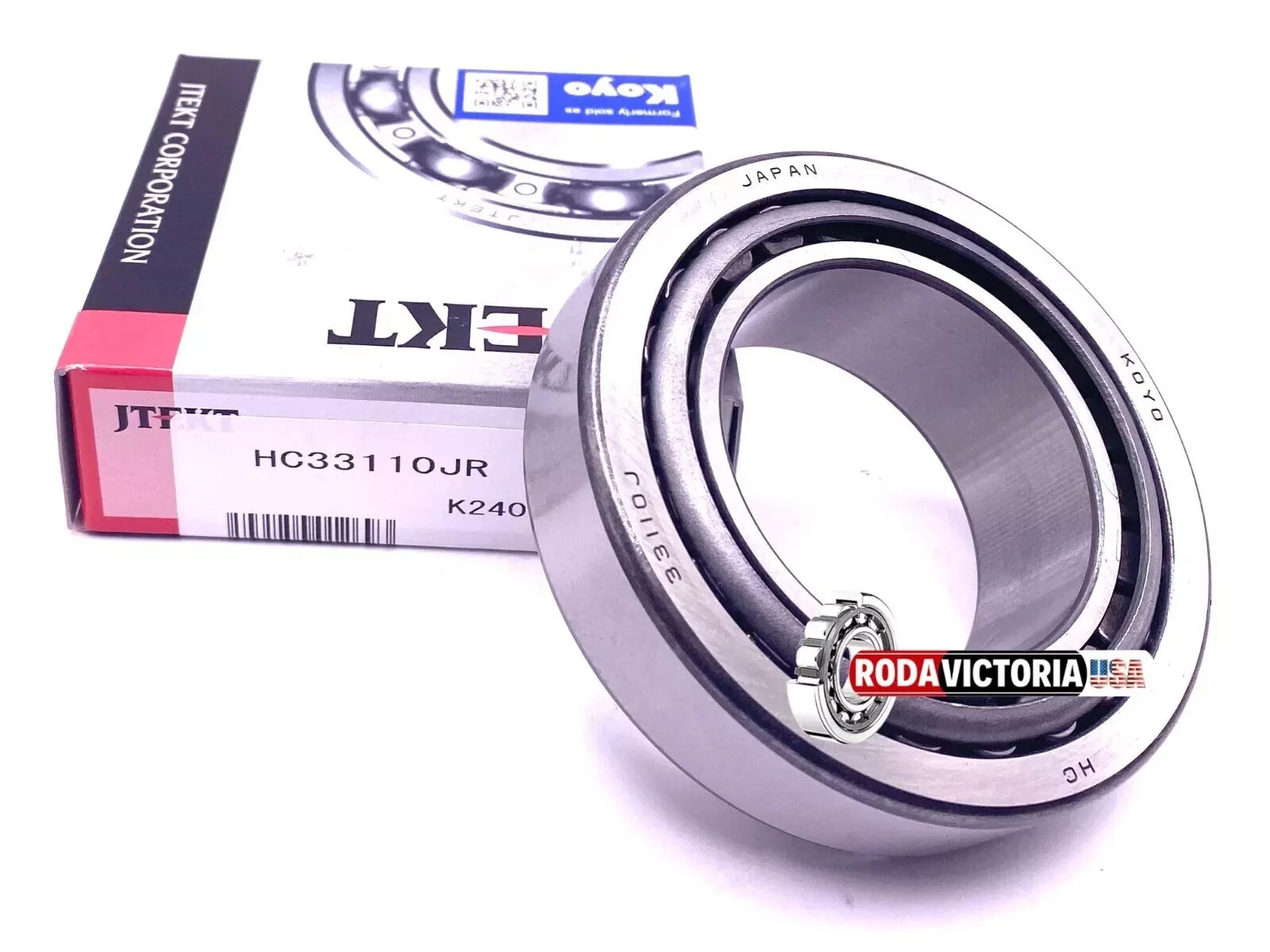

Koyo (JTEKT) 33110 JR Tapered Roller Bearing for TOYOTA 90366-5015 50x85x26 mm

Description:

Specifications

• Made in Japan
• Brand Koyo (JTEKT)
• Item Number33110 Koyo (JTEKT)
• Category Tapered Roller Bearing Single Row

Weight and Dimensions

• Inner (d) MM50
• Outer (D) MM85
• Width (B) MM26
• Inner (d) Inch1.9685
• Outer (D) Inch3.3465
• Width (B) Inch1.0236
• Weight (kg)0.584

Product Properties

• Precision Standard Precision

Product description

The 33110 Koyo (JTEKT) is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

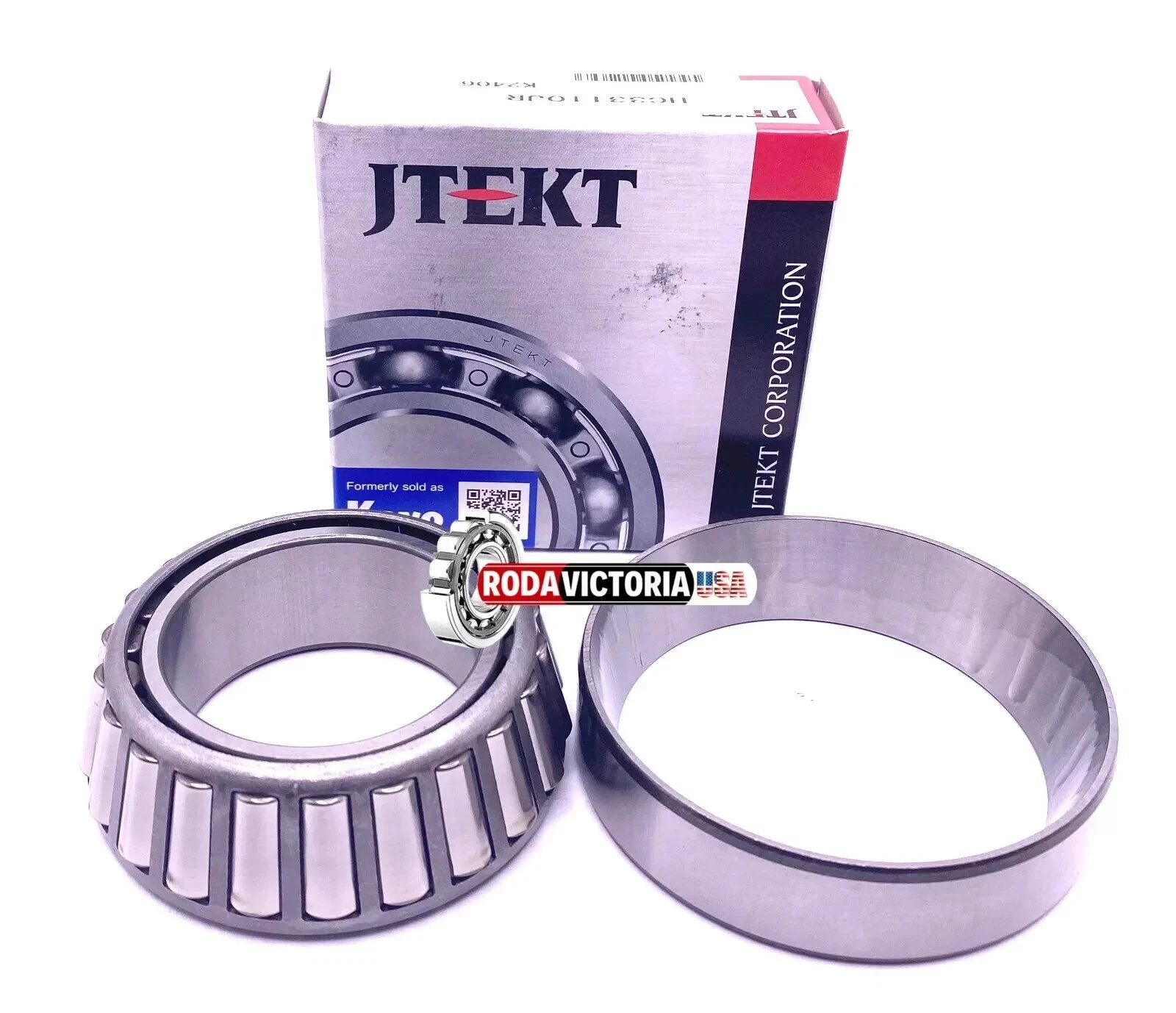

The 33110 Koyo (JTEKT) is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

 CROSS-REFERENCE NO:

REFERENCE NO OEM:

Package Includes: One (1) KOYO Bearing 33110 JR
