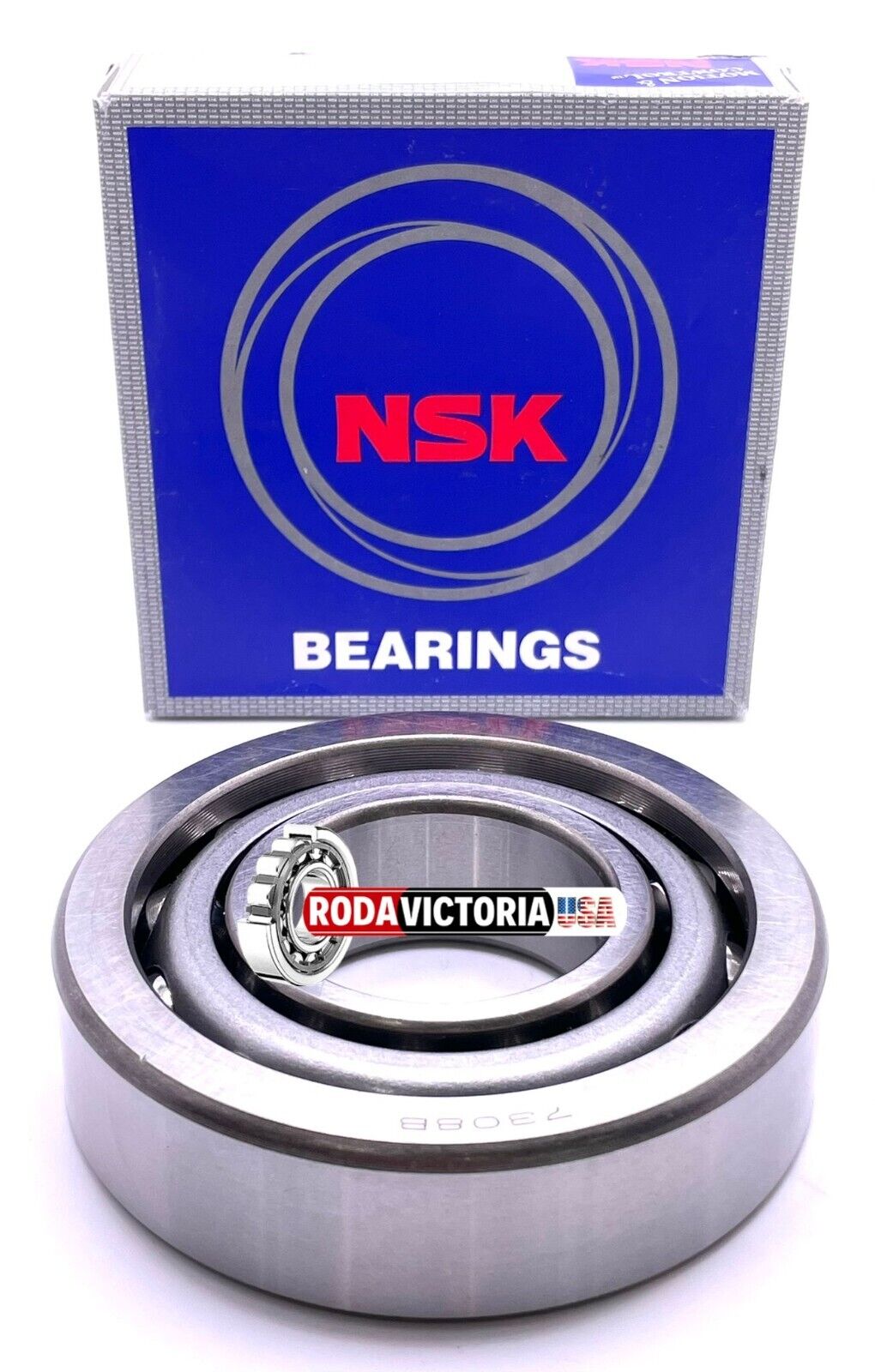

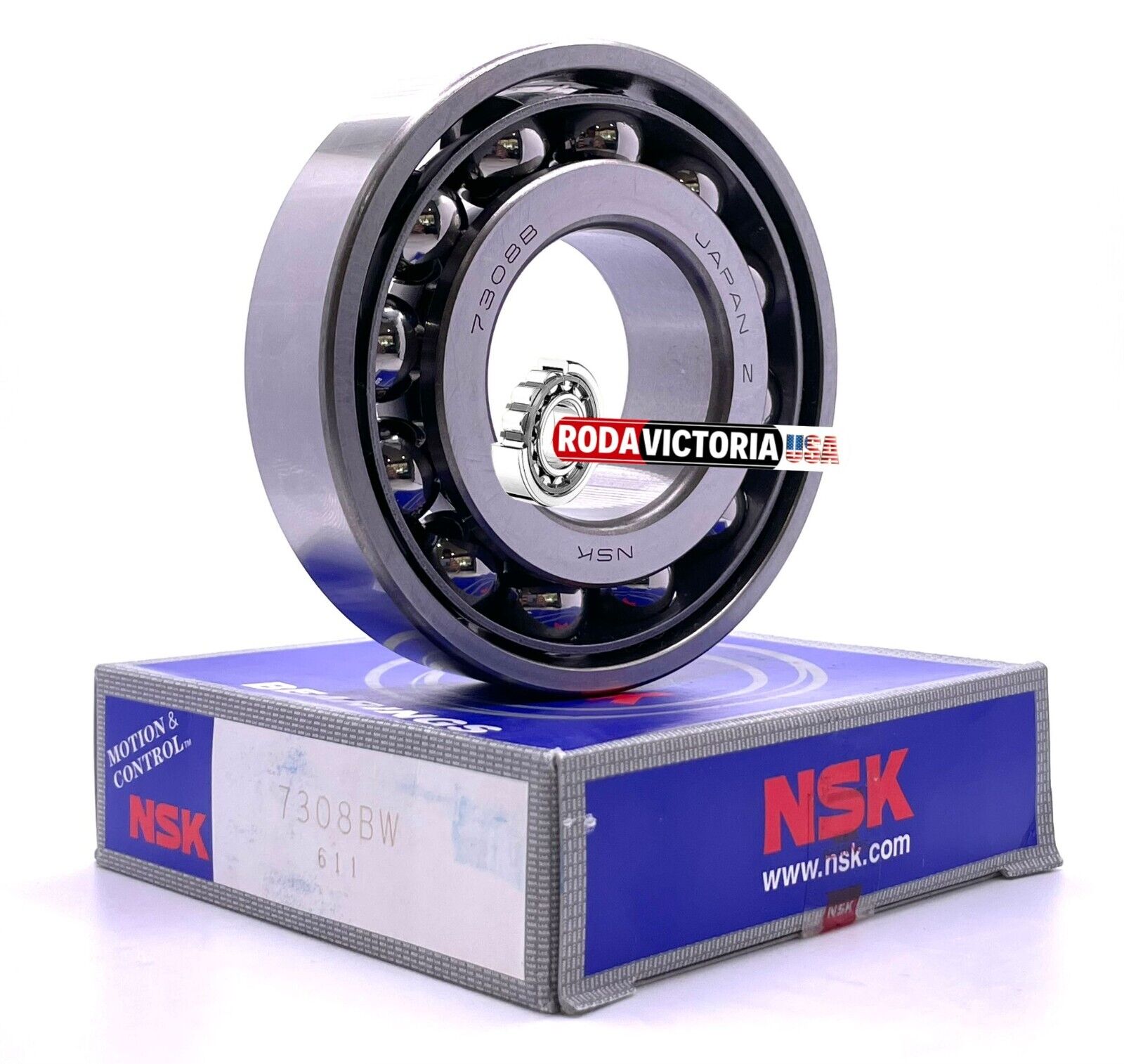

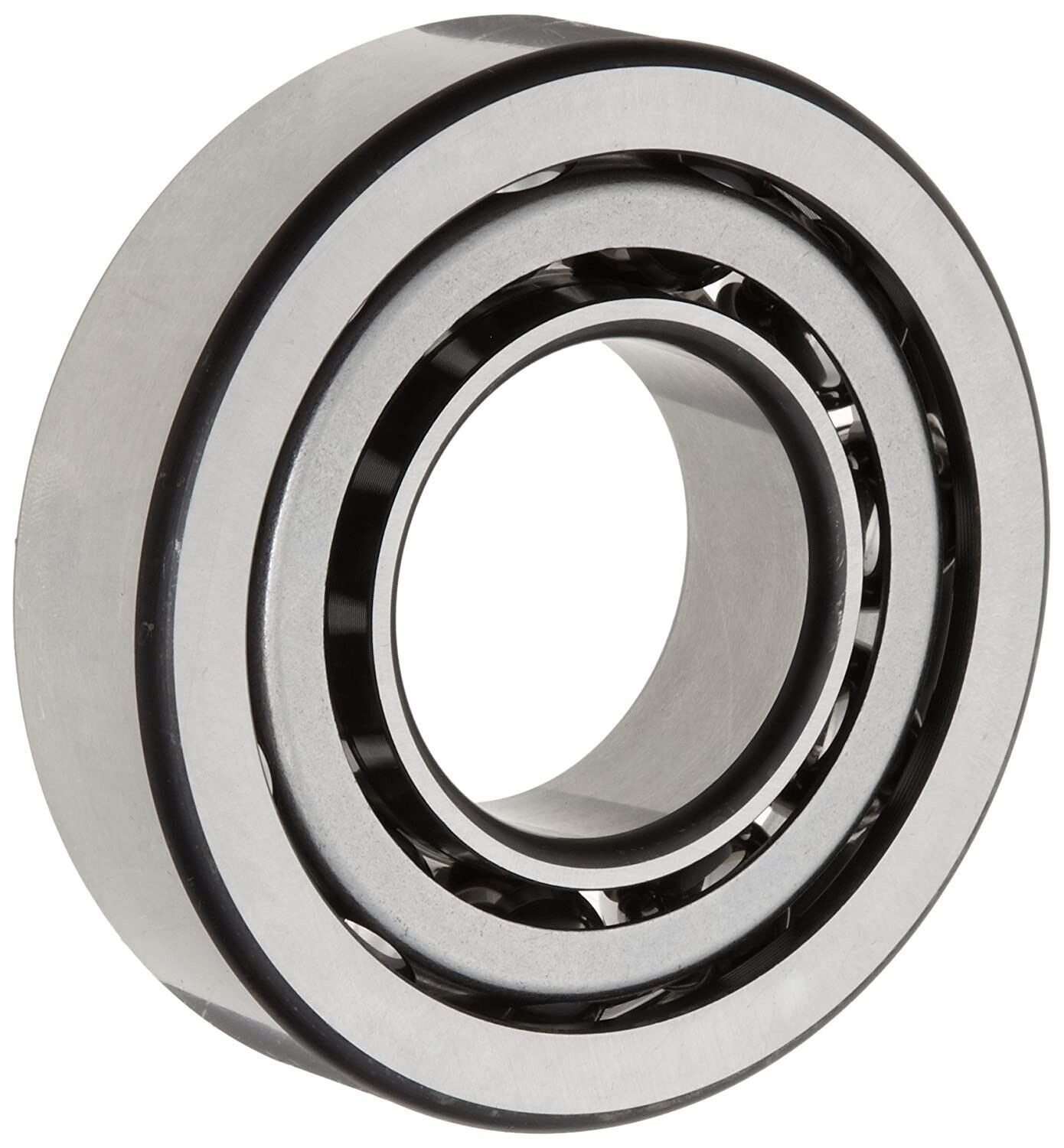

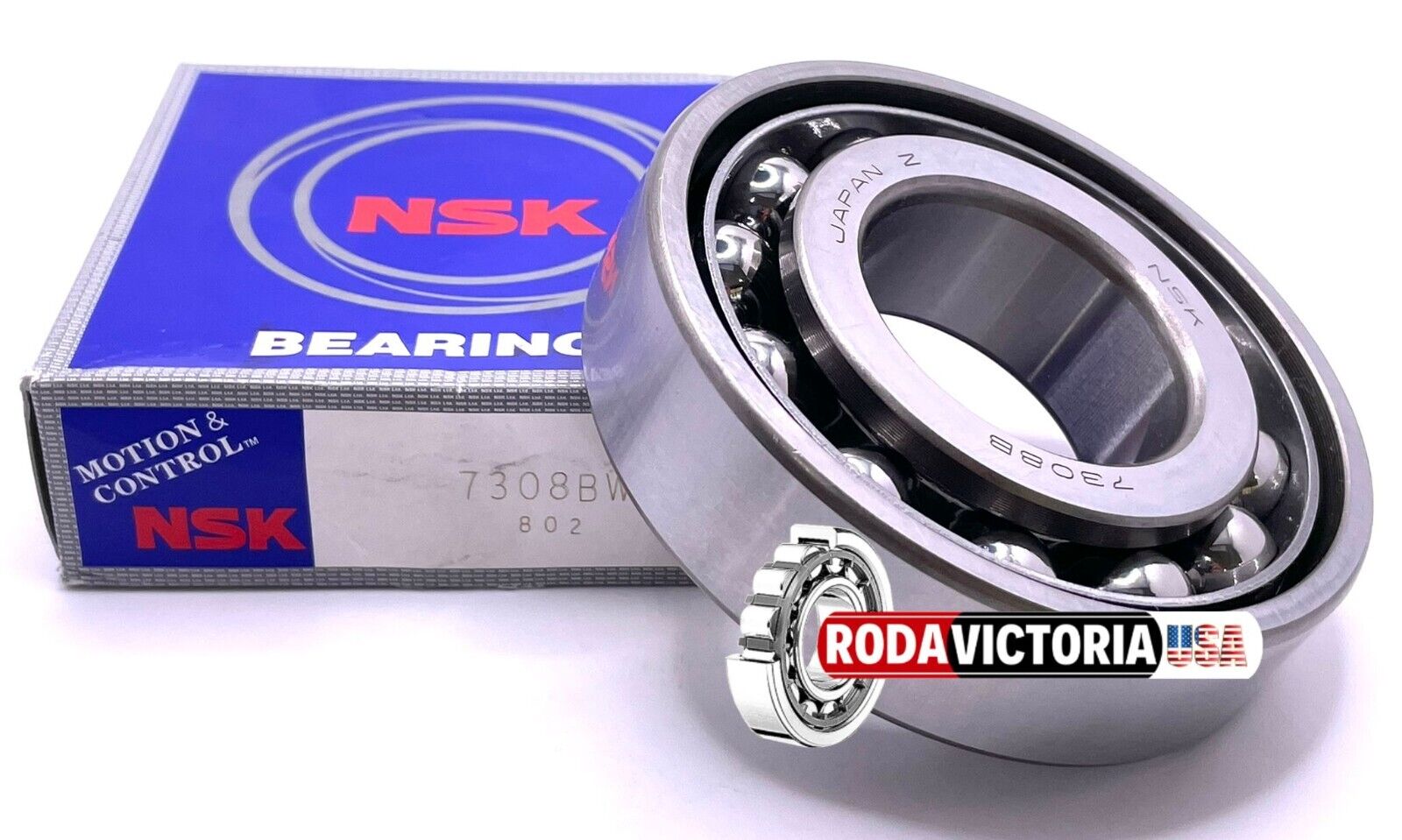

NEW NSK High-speed Angular Contact Ball Bearing 7308BW

Angular contact ball bearings 7308 BW

Bearing number : 7308 BW

Size (mm) : 40x90x23

Brand : NSK

Bore Diameter (mm) : 40

Outer Diameter (mm) : 90

Width (mm) : 23

Bearing dimensions and specification in NSK catalogue:

d – 40 mm

D – 90 mm

B – 23 mm

C – 23 mm

a – 38,8 mm

r min. – 1,5 mm

r1 min. – 1 mm

da min. – 49 mm

Da max. – 81 mm

ra max. – 1,5 mm

Weight – 0,648 Kg

Basic dynamic load rating (C) – 45 kN

Basic static load rating (C0) – 30,5 kN

(Grease) Lubrication Speed – 6 300 r/min

(Oil) Lubrication Speed – 8 500 r/min

Tags :  NSK , 40x90x23

The package includes: One Bearing 7308BW NSK
