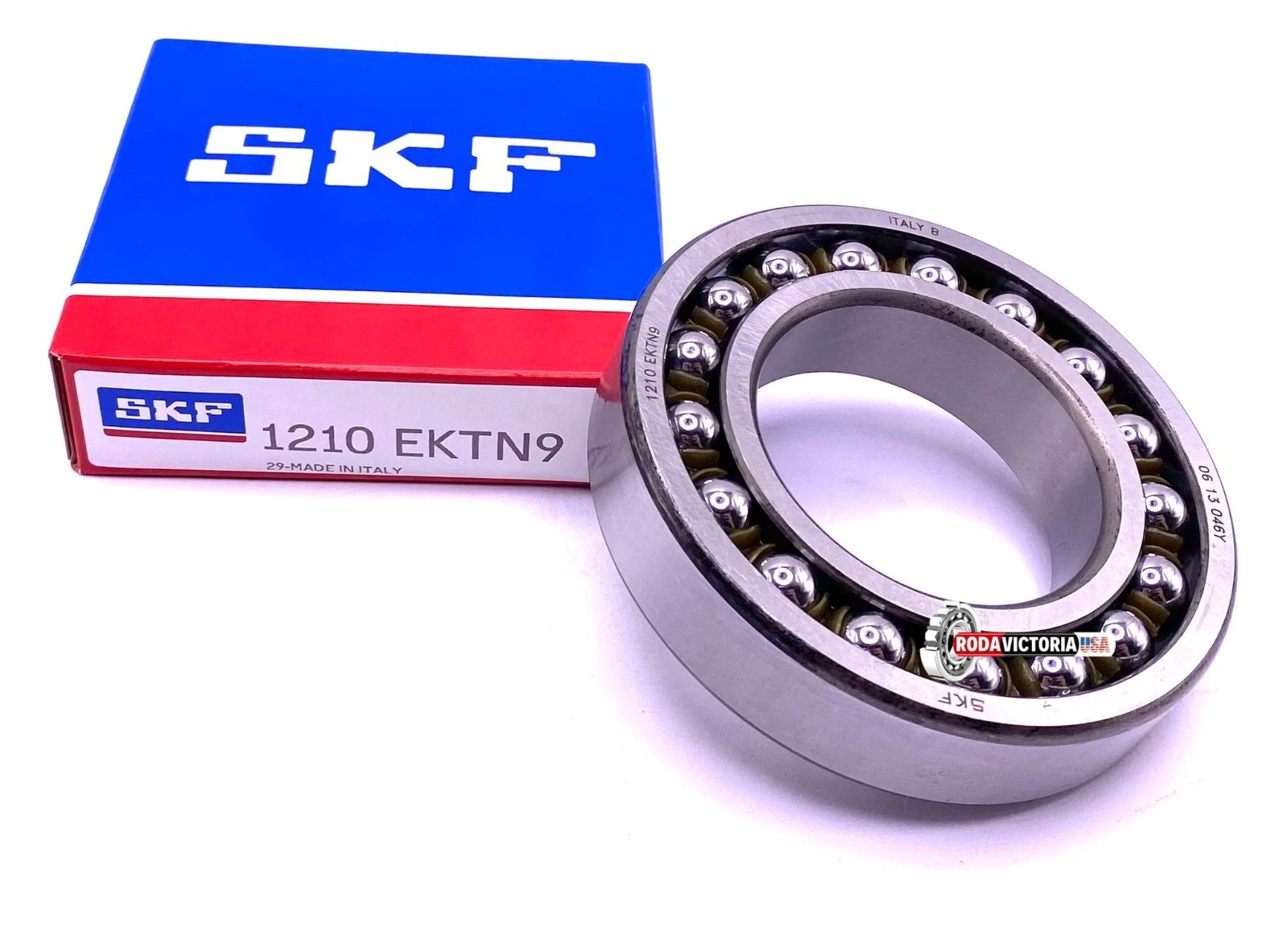

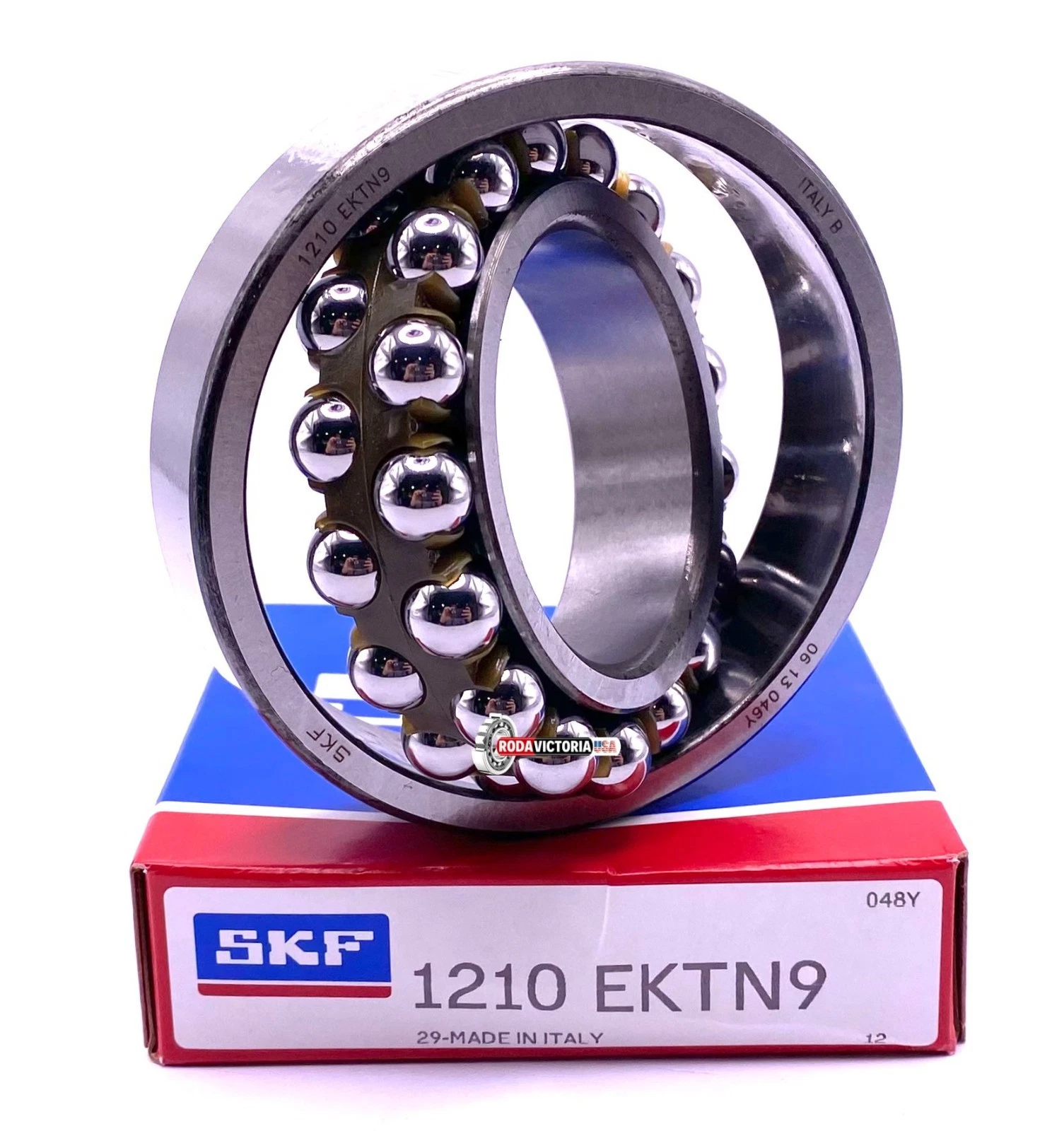

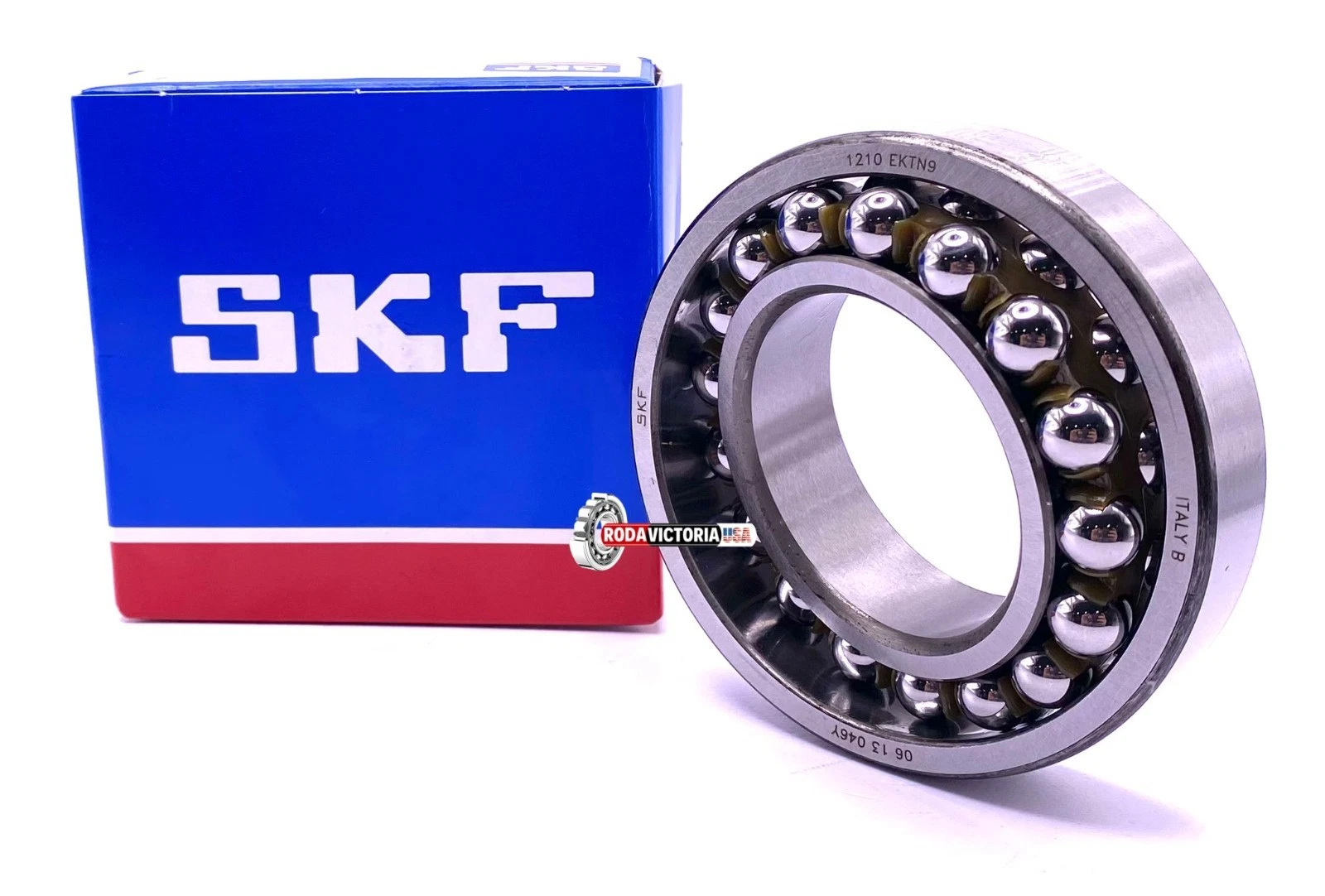

Description:
Brand: SKF
Item Number: 1210EKTN9/C3 SKF
EAN: 7316577060334
Product Type: Self-Aligning Ball Bearing – Double Row
Category: Self-Aligning Ball Bearing
Dimensions:
Inner Diameter (d): 50 mm (1.9685 in)
Outer Diameter (D): 90 mm (3.5433 in)
Width (B): 20 mm (0.7874 in)
Weight:
0.515 kg
Bore Type:
K – Tapered Bore (1:12 Taper)
Seal Type:
Open (No Seal)
Cage Type:
TN9 – Glass Fiber Reinforced Polyamide Cage
Radial Internal Clearance:
C3 – Internal Clearance Greater than Normal
Precision Class:
Standard Precision (P0 / PN2 / ABEC 1)
Lubrication:
Standard Lubrication
Operating Temperature Range:
-30 °C to +120 °C
Product Description:
The SKF 1210EKTN9/C3 is a double-row self-aligning ball bearing designed to accommodate shaft misalignment and shaft deflection without affecting performance. Both rows of balls run in a common spherical raceway in the outer ring, allowing the bearing to automatically adjust to misalignment between the shaft and housing.
The C3 internal clearance provides greater radial clearance than standard bearings, making this bearing particularly suitable for applications with thermal expansion, higher speeds, or heavier loads.
Self-aligning ball bearings are known for their very low friction and smooth rotation, which helps reduce operating temperature and increase service life.
Key Features:
• Double-row self-aligning ball bearing design
• Tapered bore (1:12) for mounting with adapter sleeves
• C3 internal clearance for demanding operating conditions
• TN9 polyamide cage for reduced friction and smooth operation
• Excellent performance under shaft misalignment conditions
• Suitable for medium to high-speed applications
Suffix Explanation:
E – Optimized internal design for higher load capacity
K – Tapered bore with 1:12 taper
TN9 – Glass fiber reinforced polyamide cage
C3 – Internal clearance greater than normal
Typical Applications:
Industrial machinery, conveyors, fans, agricultural equipment, textile machinery, and applications where shaft misalignment or shaft deflection may occur.
PACKAGE INCLUDES: ONE (1) SKF Bearing 1210 EKTN9 C3
