Description:
Product characteristics
Category:Bushes
Material:PTFE composite
Temperature range:-200 to +280 °C
Lubrication & Maintenance:Maintenance-free, for dry-running applications
Weight:0,007 kg
ProductID:10249561
Country of origin:Slovakia
Customs tariff number:8483 3080
EAN:7316571896083
Manufacturer part number:169465
Dimensions
Inner dimension: 14,000 mm
Outer dimension: 16,000 mm
Width: 20,000 mm

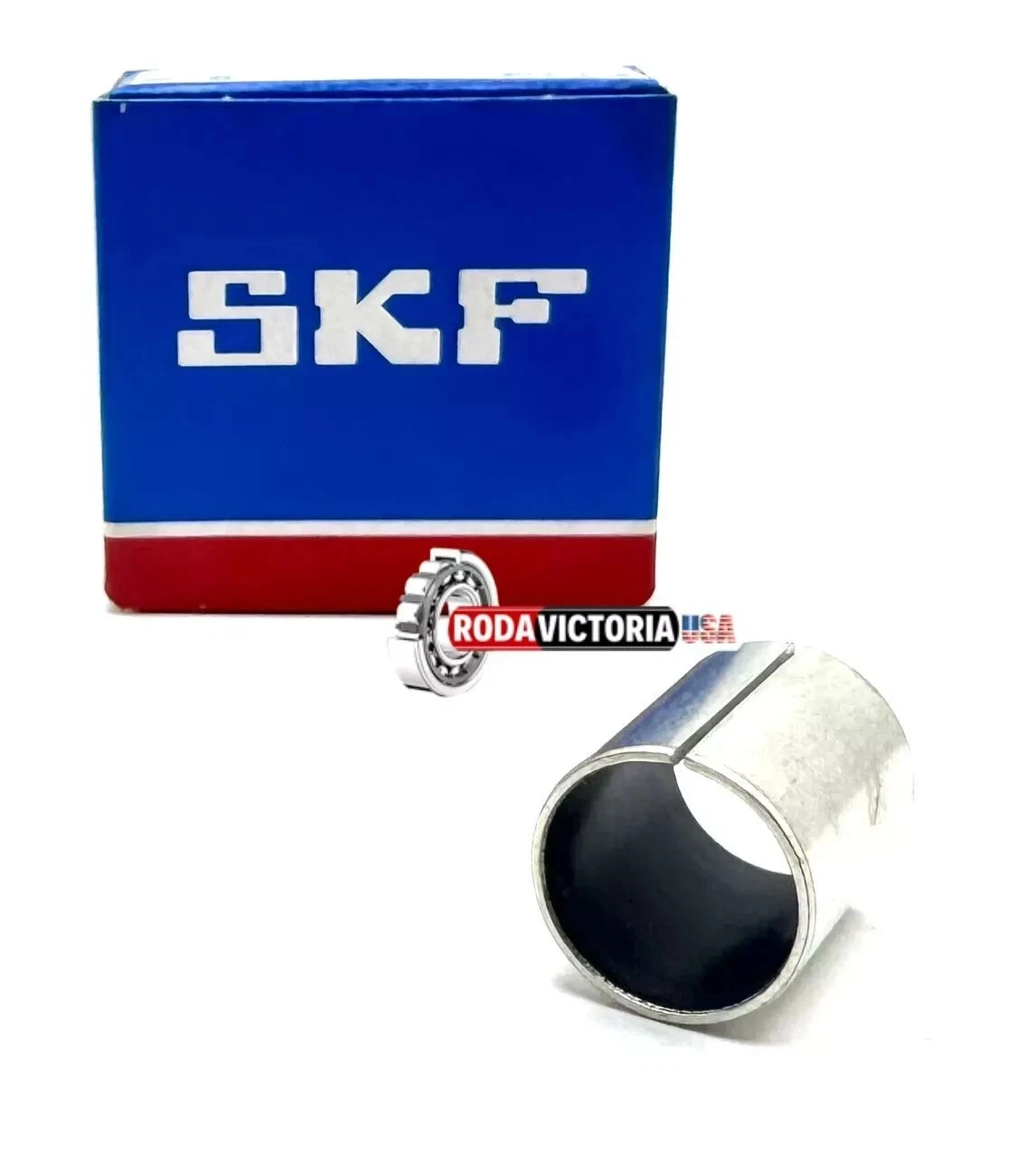

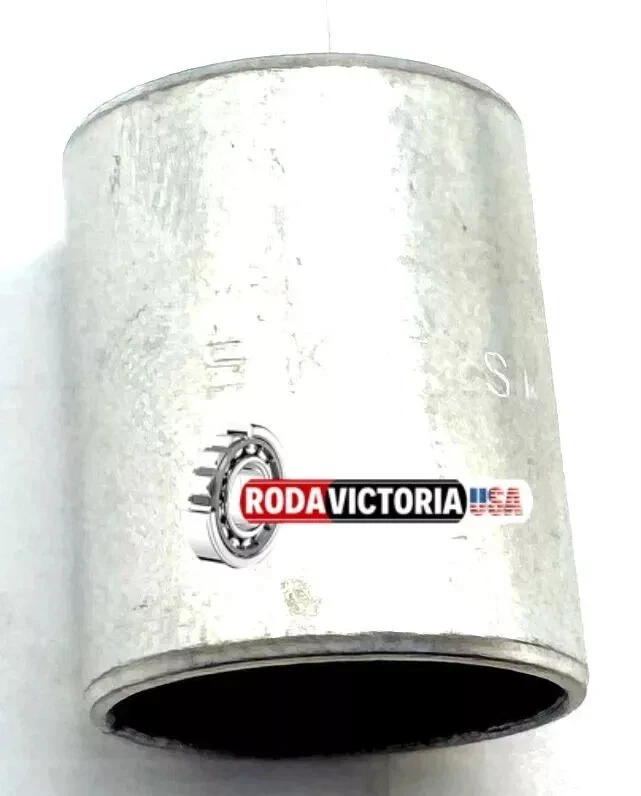

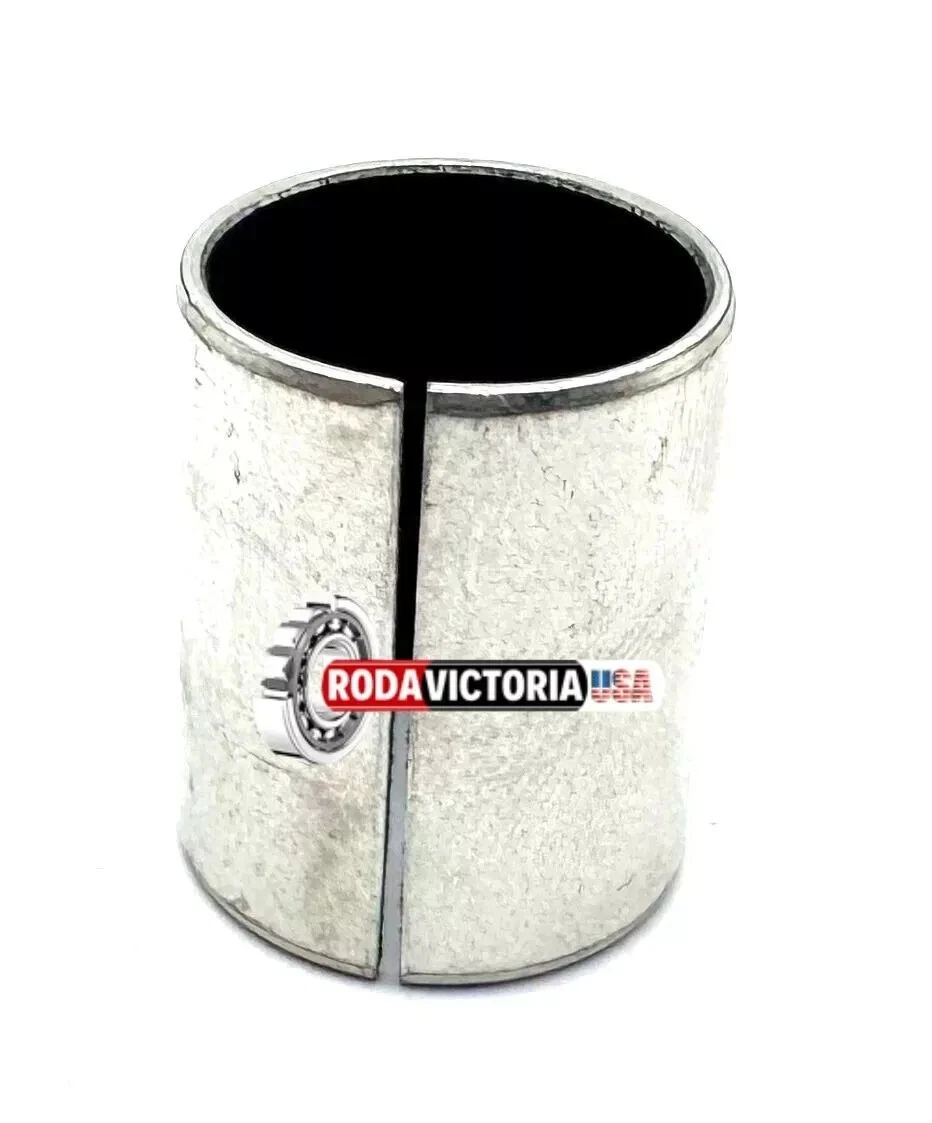

PCM 141620 E
PTFE composite straight bushing
SKF PTFE composite straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. Despite their thin-walled design, they can accommodate heavy loads. They also provide good heat dissipation, therefore enabling relatively high sliding velocities.
- Maintenance-free operation
- Cost-effective with long service life
- High operating temperatures
- High load carrying capacity
- High sliding velocity and small operating clearance
- Dimensions
| Bore diameter | 14Â mm |
| Outside diameter | 16Â mm |
| Width | 20Â mm |
- Performance
| Basic dynamic load rating | 22.4Â kN |
| Basic static load rating | 70Â kN |
- Properties
| Design | Straight |
| Material | PTFE composite |
| Relubrication feature | Without |
- Logistics
| Product net weight | 0.0071Â kg |
| eClass code | 23-05-01-90 |
| UNSPSC code | 31171605 |
Â
Package Includes: ONE (1) SKF Bushing PCM141620
