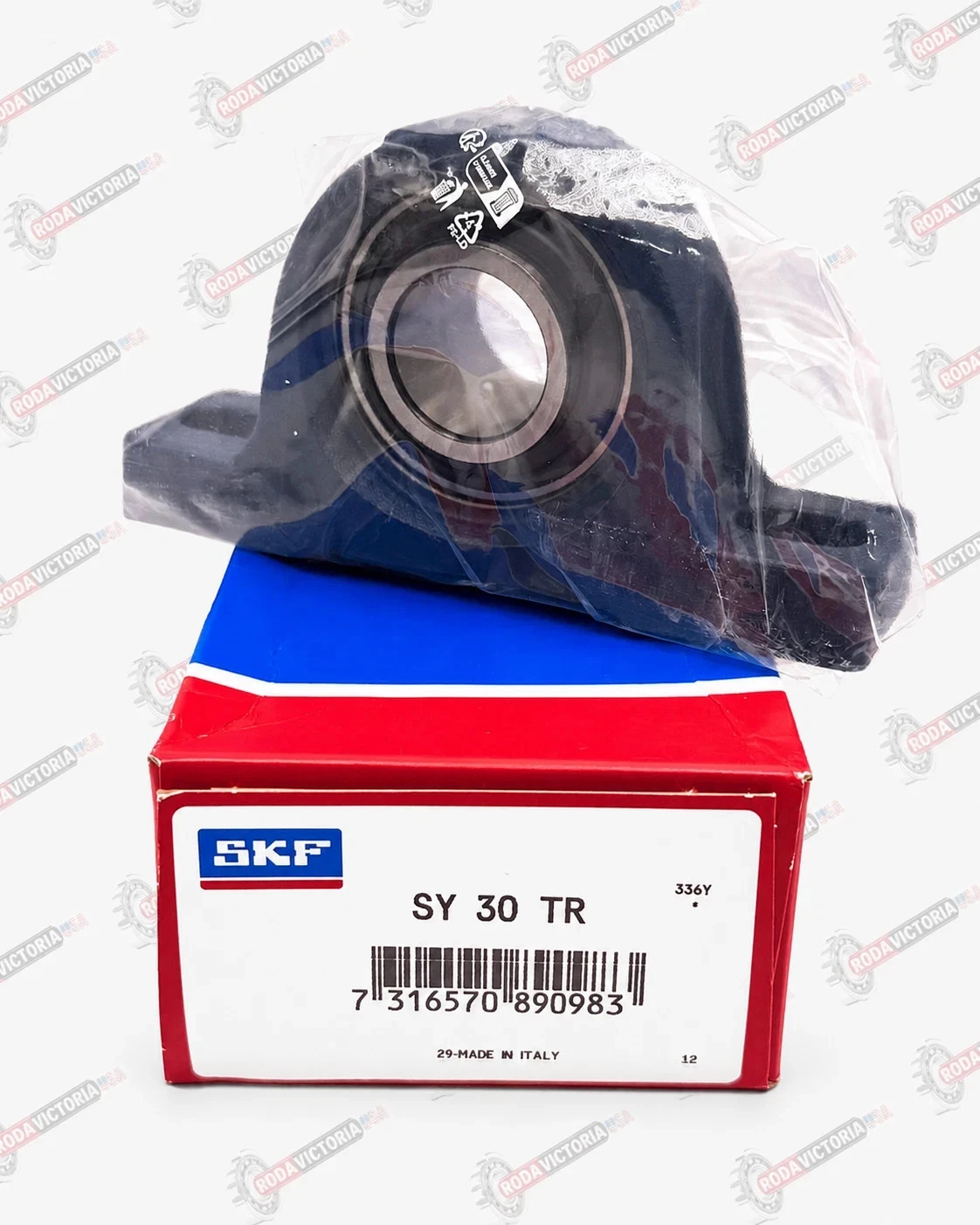

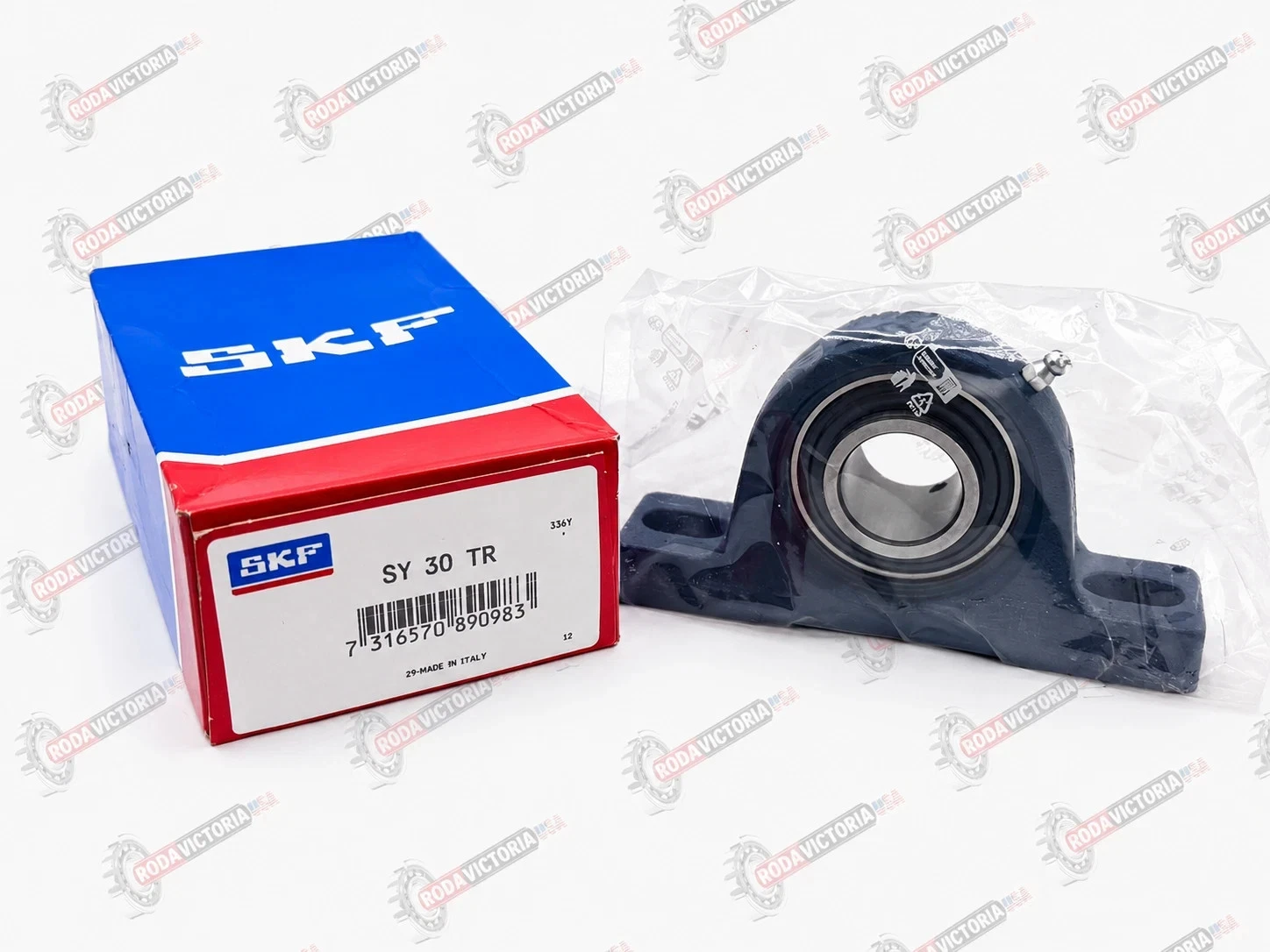

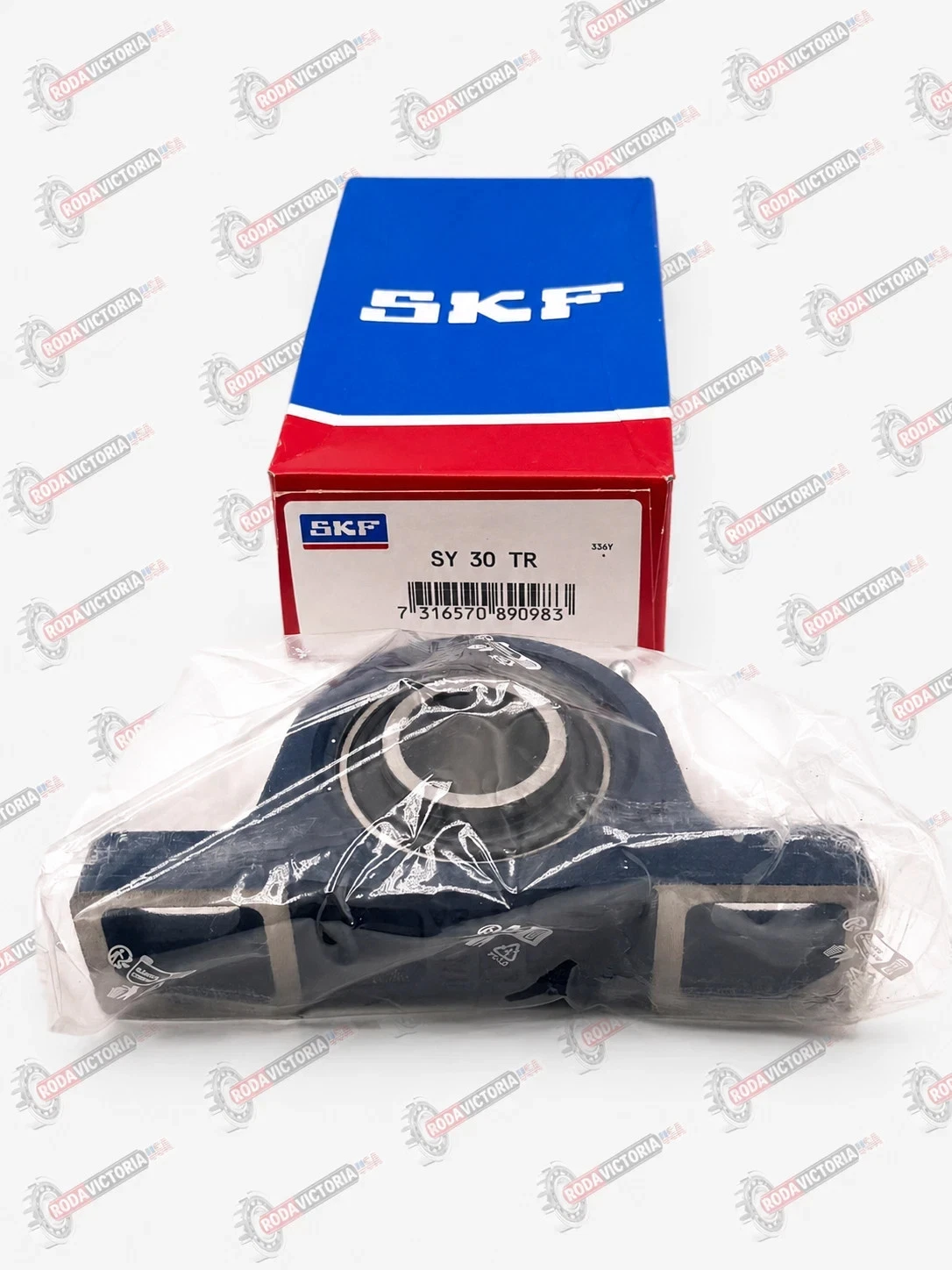

SKF SY30 TR Housing and Bearing Assembly YAR206-2RF + SY506M 30mm ID

Description:

• SKF SY30TR Cast Iron Bearing Unit – 30 mm BoreAlso Known As:
  56206 + SG206S
  SG56206
  YAR206-2RF + SY506MDimensions:
  Inner Diameter: 30 mm / 1.1811 in
  Overall Length: 152 mm / 5.9843 in
  Width: 40 mm / 1.5748 inTechnical Attributes:
  d: 30 mm
  A: 40 mm
  A1: 25 mm
  F: 42.9 mm
  F2: 82 mm
  J: 117.5 mm
  L: 152 mm
  Clearance: C3 – Greater than normal
  Dynamic Load Rating: 19,500 N
  Static Load Rating: 11,200 N
  Limiting Speed: 3,800 rpm
  Temperature Range: -20°C to +120°C
  Fixing Method: Threaded pins / grub screw locking
  Mounting Version: Mounting from above and belowSuffix Description:
  TR: Y-bearing of series YAR2-2RF with inner ring extended at both sides, grub screw locking, standard seal, and rubberized flinger at each side.
• Product Description:
  The SKF SY30TR is a complete cast iron housing and bearing assembly designed for reliable shaft support and easy installation. The bearing and housing components are matched to each other for dependable operation. This ready-to-install unit features C3 internal clearance, standard lubrication, and 2RF sealing with rubberized flingers on both sides for added protection against contamination. The housing supports and protects the bearing, simplifies installation, and helps make maintenance easier while extending bearing service life.
• Seal Type: 2RF – Two seals with rubberized flingers
  Sealing: NBR contact seal with additional rubberized flinger on both sides
  Lubrication: Standard lubrication
  Special Treatment: No special treatment
• Weight: 1.08 kg / 1.126 kg
• Material: Cast iron housing with standard bearing steel insert
  Color: Dark blue / grey
• Brand: SKF
  Item Number: SY30TR SKF
  Manufacturer: SKF
  Manufacturer Part Number: 7316570890983
  EAN: 7316570890983
  Product ID: 10245349
  Category: Housing and Bearing Assembly / Plummer Block Housing Unit
  Type: Cast Iron Bearing Unit
  Country of Origin: Italy
  Customs Tariff Number: 8483 2000

Package Includes: ONE (1) SKF Housing and Bearing Assembly SY30 TR
